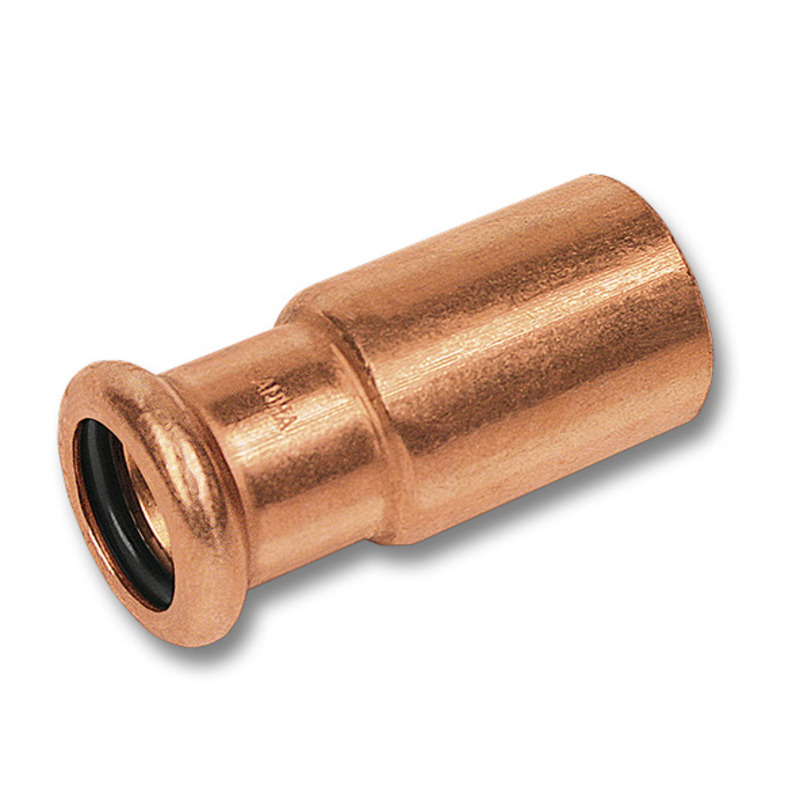

PRESS REDUCER M/F CU 108x42 SANHA

Product code
1548356
Copper compression fitting system suitable for installation with 64mm - 108mm M and SA profile lips. Pressure class PN16. Black EPDM O-ring resistant to glycol. Operating temperature: -30°C to 120°C. Components compatible with EN1057 copper pipes. Threaded parts manufactured from phosphor bronze (CuSi), a zinc and lead-free material. Phosphor bronze components can be installed with Sanha acid-resistant pipes. Leak-free without compression. Always perform a leak test before pressure testing. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fitting with 2 connections (EC003024)
ShapeStraight
Connection 2Press sleeve

Product codes

SAPCMN301
HPAC1548356
PLC1548356
GTIN/EAN4021343206825
Manufacturer part number1624310842
Vendor material number1624310842

Basic information

Package measurements (L x W x H)175 x 108 x 108 mm
Package volume2.041 l
Package weight1.26 kg
Base uniteach
Package units1 / 4
Package contents
UNSPSC40172612
BrandSANHA
VendorSANHA POLSKA SP.ZO.O.

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)3.465
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents
