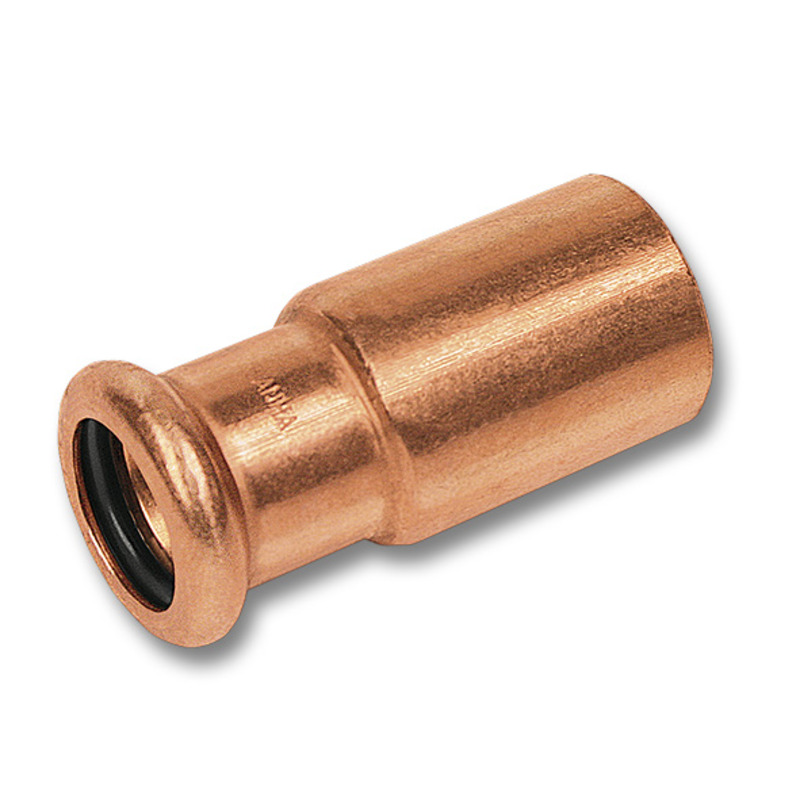

PRESS REDUCER M/F CU 42x28 SANHA
Product code
1548343
Copper compression fitting system suitable for installation with M, V, and SA profiles up to 54 mm. Pressure class PN16, black EPDM O-ring resistant to glycol. Operating temperature: -30°C to 120°C. Components compatible with EN1057 copper pipes. Threaded parts manufactured from phosphor bronze (CuSi), a zinc and lead-free material. Phosphor bronze components can be installed with Sanha acid-resistant pipes. Leak-free without compression. Always perform a leak test before pressure testing. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
ShapeStraight
Reducingyes
Outer pipe diameter connection 142 mm
Outer pipe diameter connection 228 mm
Connection 2Press sleeve
Product codes
SAPAMN210
HPAC1548343
PLC1548343
GTIN/EAN4021343129094
Manufacturer part number162434228
Vendor material number162434228
Basic information
Package measurements (L x W x H)42 x 42 x 83 mm
Package volume0.146 l
Package weight0.11 kg
Base uniteach
Package units1 / 2 / 70
Package contents–
UNSPSC40172612
BrandSANHA
VendorSANHA POLSKA SP.ZO.O.
Documents (13)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.3025
GWP, uniteach
Source for GWP dataEPD
