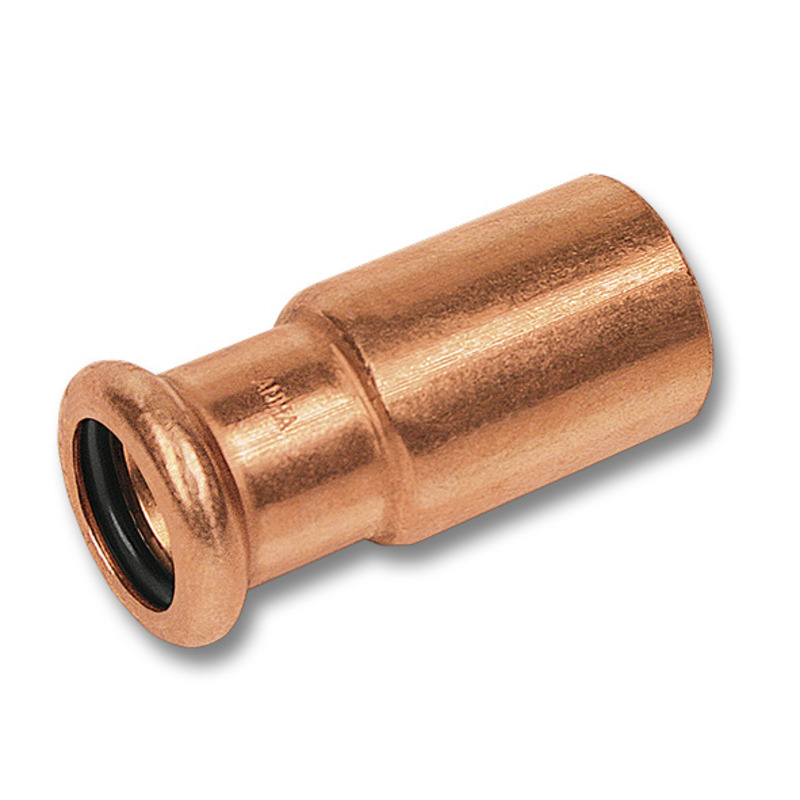

PRESS REDUCER M/F CU 42x35 SANHA
Product code
1548344
Copper compression fitting system suitable for installation with M, V, and SA profiles up to 54 mm. Pressure class PN16, black EPDM O-ring resistant to glycol. Operating temperature: -30°C to 120°C. Components compatible with EN1057 copper pipes. Threaded parts manufactured from phosphor bronze (CuSi), a zinc and lead-free material. Phosphor bronze components can be installed with Sanha acid-resistant pipes. Leak-free without compression. Always perform a leak test before pressure testing. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
ShapeStraight
Reducingyes
Outer pipe diameter connection 142 mm
Outer pipe diameter connection 235 mm
Connection 2Press sleeve
Product codes
SAPAMN211
HPAC1548344
PLC1548344
GTIN/EAN4021343129100
Manufacturer part number162434235
Vendor material number162434235
Basic information
Package measurements (L x W x H)78 x 46 x 46 mm
Package volume0.165 l
Package weight0.116 kg
Base uniteach
Package units1 / 2 / 60
Package contents–
UNSPSC40172612
BrandSANHA
VendorSANHA POLSKA SP.ZO.O.
Documents (13)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.319
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
