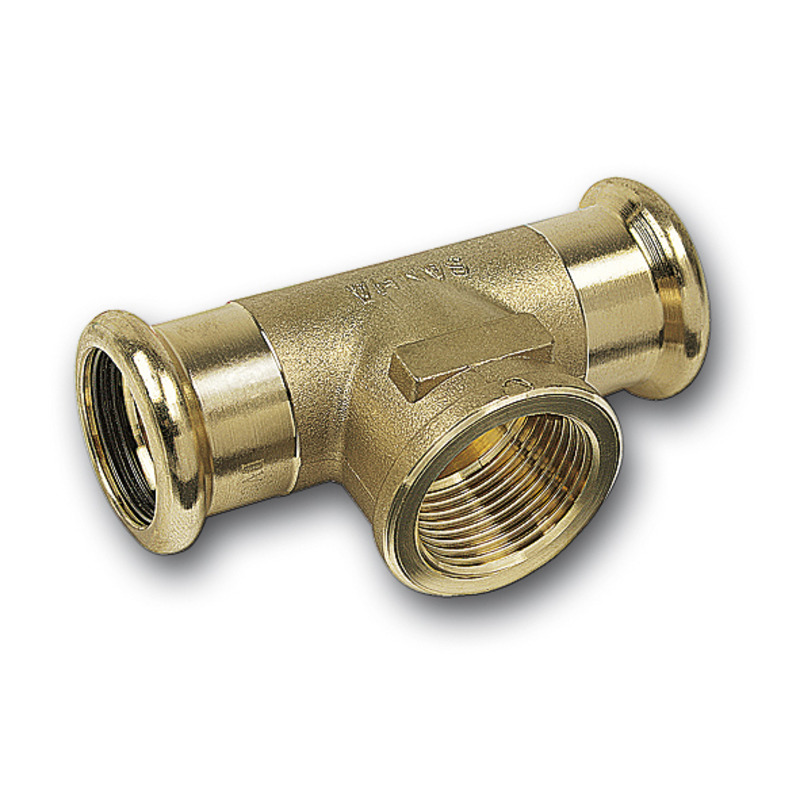

PRESS T-PIECE FT CU 42x1/2x42 SANHA
Product code
1548533
Copper compression fitting system suitable for installation with M, V, and SA profiles up to 54 mm. Pressure class PN16, black EPDM O-ring resistant to glycol. Operating temperature: -30°C to 120°C. Components compatible with EN1057 copper pipes. Threaded parts manufactured from phosphor bronze (CuSi), a zinc and lead-free material. Phosphor bronze components can be installed with Sanha acid-resistant pipes. Leak-free without compression. Always perform a leak test before pressure testing. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Copper
ModelT-piece
Nominal diameter connection 1Other
Connection 1Press sleeve
Nominal diameter connection 2Other
Connection 2Press sleeve
Nominal diameter connection 3Other
Connection 3Press sleeve
Product codes
SAPAPL638
HPAC1548533
PLC1548533
GTIN/EAN4021343140211
Manufacturer part number181304212
Vendor material number181304212
Basic information
Package measurements (L x W x H)102 x 63 x 54 mm
Package volume0.347 l
Package weight0.307 kg
Base uniteach
Package units1 / 2 / 18 / 1620
Package contents–
UNSPSC40172612
BrandSANHA
VendorSANHA POLSKA SP.ZO.O.
Documents (12)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.5872
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
