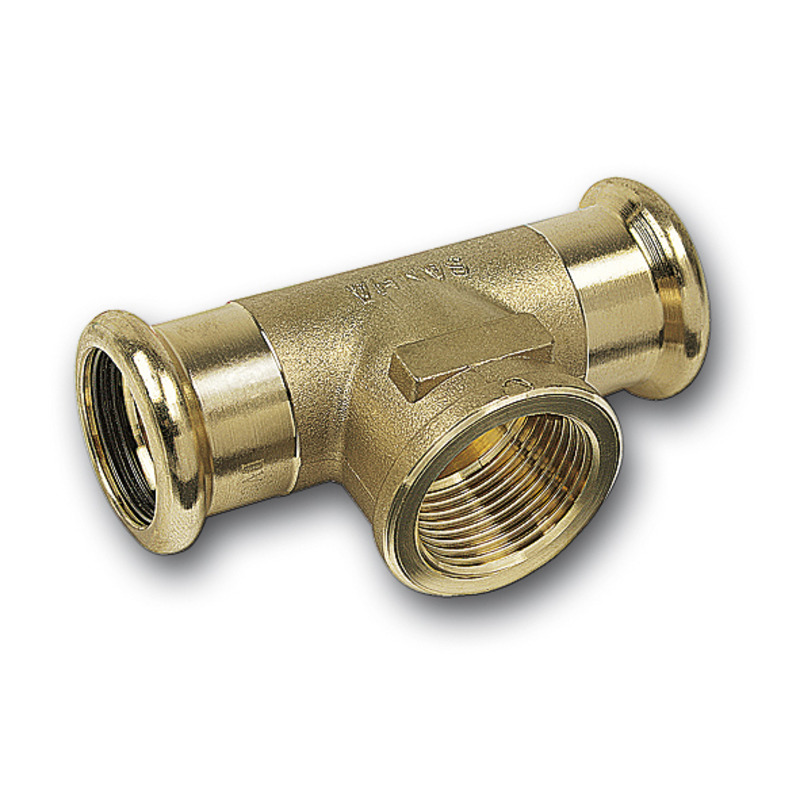

PRESS T-PIECE FT CU 54x1/2x54 SANHA
Product code
1548536
Copper compression fitting system suitable for installation with M, V, and SA profiles up to 54 mm. Pressure class PN16, black EPDM O-ring resistant to glycol. Operating temperature: -30°C to 120°C. Components compatible with EN1057 copper pipes. Threaded parts manufactured from phosphor bronze (CuSi), a zinc and lead-free material. Phosphor bronze components can be installed with Sanha acid-resistant pipes. Leak-free without compression. Always perform a leak test before pressure testing. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Copper
ModelT-piece
Connection 1Press sleeve
Nominal diameter connection 21/2 inch (15)
Connection 2Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
Connection 3Press sleeve
Product codes
SAPAPL453
HPAC1548536
PLC1548536
GTIN/EAN4021343140235
Manufacturer part number181305412
Vendor material number181305412
Basic information
Package measurements (L x W x H)112 x 75 x 65 mm
Package volume0.546 l
Package weight0.476 kg
Base uniteach
Package units1 / 2 / 10 / 900
Package contents–
UNSPSC40172612
BrandSANHA
VendorSANHA POLSKA SP.ZO.O.
Documents (13)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.4609
GWP, uniteach
Source for GWP dataEPD
