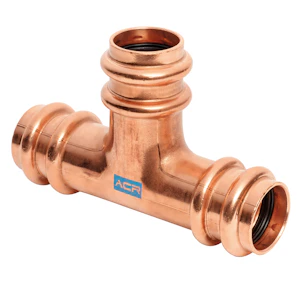

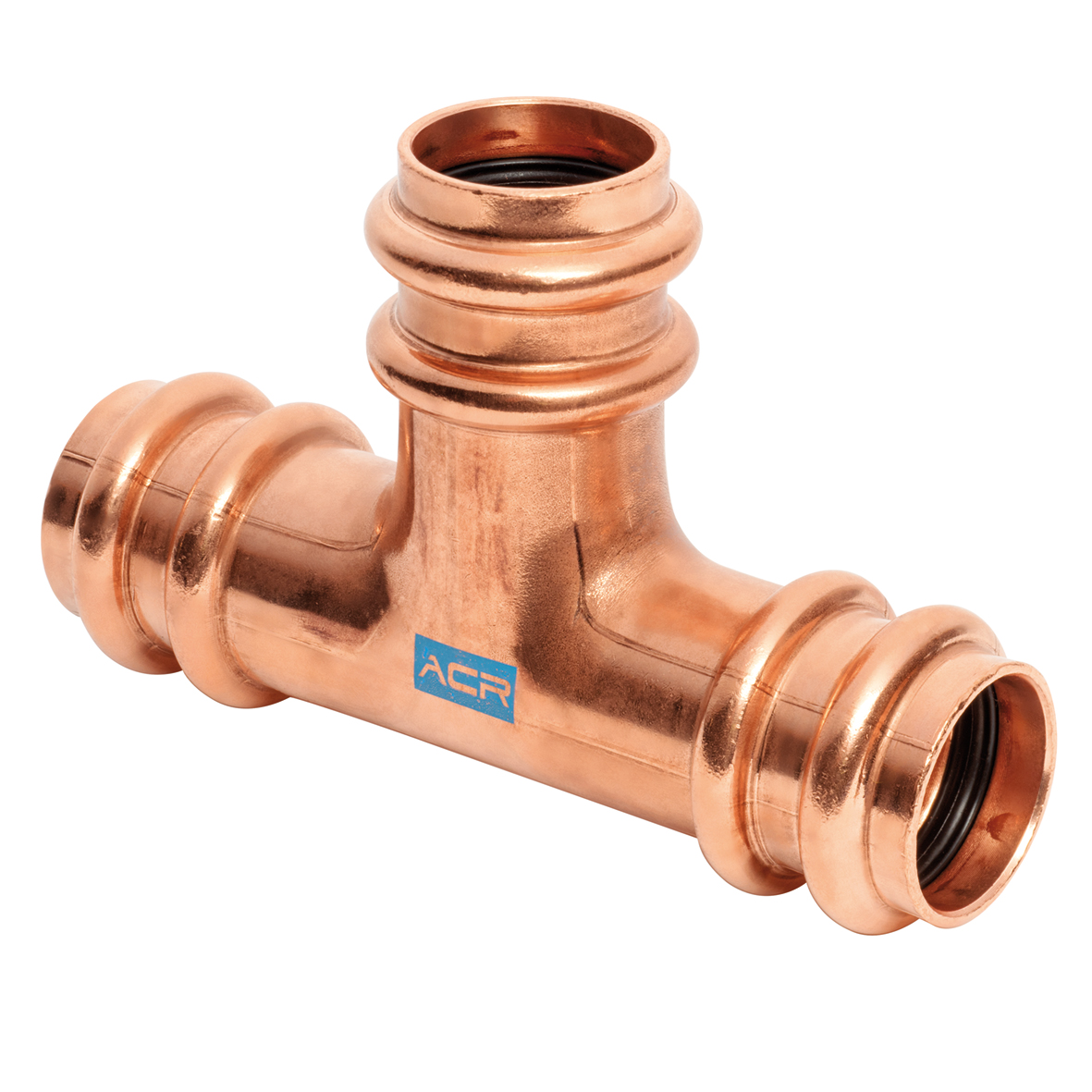

PRESS FITTING SANHA ACR 32132 TEE 3/4
Product code
1548870
New, innovative Sanha ACR compression fitting system. Each compression joint in the Sanha ACR system features two O-rings to ensure maximum seal integrity in every connection. Compatible with all conventional HFC and HFO refrigerants as well as propane R290 and butane R600/R600a. Maximum pressure 48 bar. Required compression force 32 kN. Compatible with Milwaukee M18 ONEBLHPT-302C compression tool. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Copper
ModelT-piece
Nominal diameter connection 13/4 inch (20)
Connection 1Insert (push-fitting)
Nominal diameter connection 23/4 inch (20)
Connection 2Insert (push-fitting)
Nominal diameter connection 33/4 inch (20)
Connection 3Insert (push-fitting)
Product codes
SAPDEV280
HPAC1548870
PLC1548870
GTIN/EAN4021343503665
Manufacturer part number13213034
Vendor material number13213034
Basic information
Package measurements (L x W x H)93 x 60 x 27 mm
Package volume0.151 l
Package weight0.14 kg
Base uniteach
Package units2 / 30
Package contents–
UNSPSC40183110
BrandSANHA
VendorSANHA POLSKA SP.ZO.O.
Documents (2)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1092
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000289
