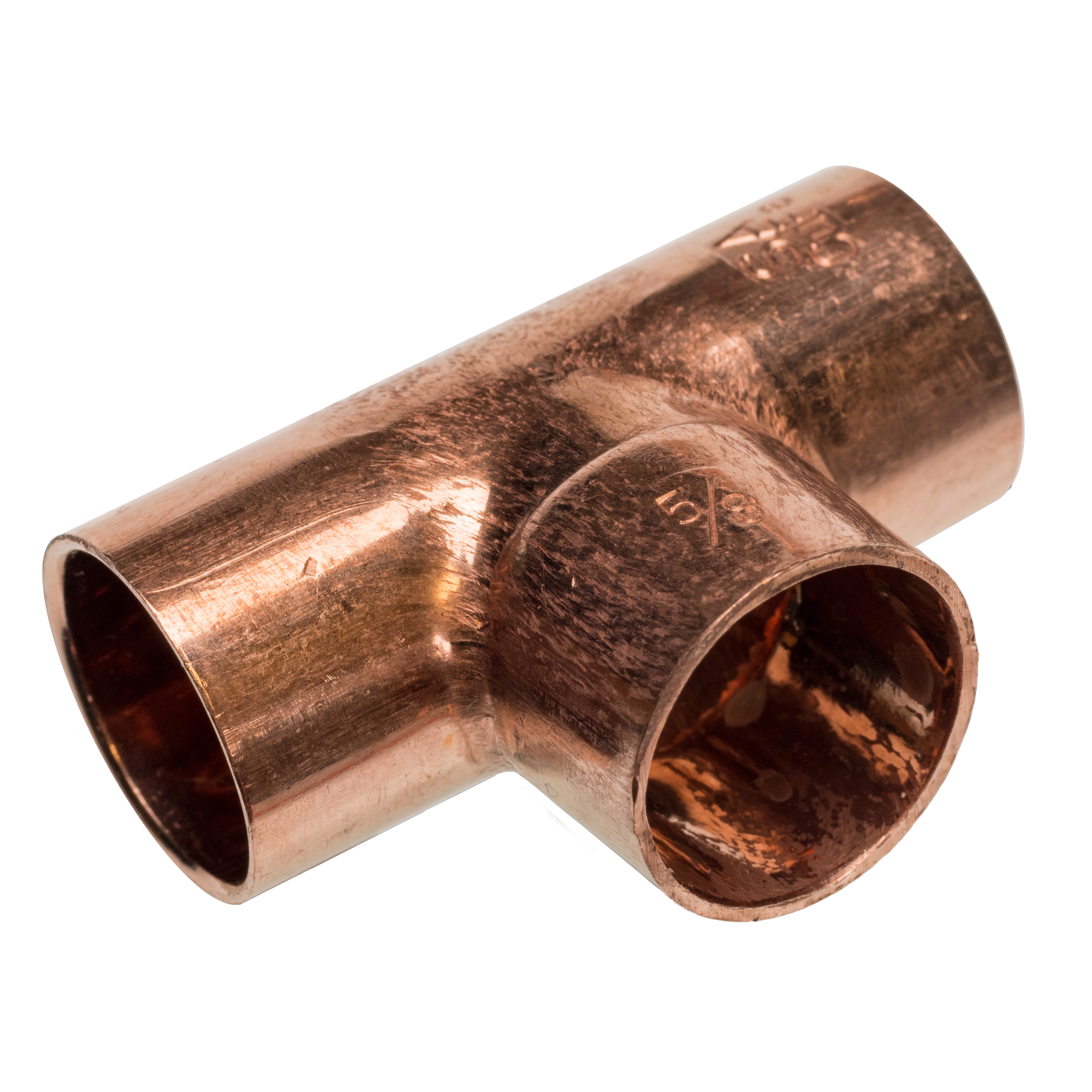

REF HP T-PIECE 5/8X1/2X1/2 120BAR 29130
Product code
K7111675
Sanha Rep HP components are manufactured from CuFe tubing with a maximum operating pressure of 130 bar. Operating temperature range -196°C to 150°C. Components are primarily designed for demanding CO2 refrigeration systems. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
ModelT-piece
Connection 1Soldered sleeve
Nominal diameter connection 21/2 inch (15)
Connection 2Soldered sleeve
Nominal diameter connection 31/2 inch (15)
Connection 3Soldered sleeve
Product codes
SAPCCV570
PLCK7111675
GTIN/EAN4021343431906
Manufacturer part number129130581212
Vendor material number129130581212
Basic information
Package measurements (L x W x H)38.8 x 18 x 26.9 mm
Package volume0.019 l
Package weight0.031 kg
Base uniteach
Package units1 / 10 / 300
Package contents–
UNSPSC40182006
BrandSANHA
VendorSANHA POLSKA SP.ZO.O.
Documents (4)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0242
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000289
