COOKER HOOD SAVO dCH-m7509-B

The modular DUAL range hood dCH-m75 controls both AC and EC motors. The range hood features intelligent software developed by Savo. The range hood’s features can be highly versatile customized according to user and project requirements. The convenient electric mV-125 boost valve, available as an optional accessory, makes the dCH-m75 range hood suitable for controlling also AC and EC ventilation units.

Features

• Wall mounting
• Controls AC extractor hoods and duct fans (max. 420 W) as well as EC extractor hoods and duct fans
• Can simultaneously control both AC and EC motors if desired
• Motorized boost valve (optional accessory, mV-125) easily retrofittable
• Highly versatile features and configurability for various building technologies and user needs; e.g., winter start, timed intensive operation, automatic light and fan shut-off, turbo mode, range hood switch-on function, 24/7 operation (i.e., so-called 0-bypass)
• Indicator for valve open position or/and fan running
• Multiple alarm output options (Open Collector output) for building automation
• Range hood software (FW) can be easily updated with new features throughout the entire product lifecycle using Savo’s dedicated Windows-based configuration tool (Savo Configuration Tool)
• All basic settings of the range hood can be easily configured even without the configuration tool
• Adjustable fan speeds for all settings
• Short-circuit protected AC motor output
• Lighting system rated power LED 2 x 1.3 W (4000 K)
• Mechanical control switches
• Timed functions
• Metallized washable grease filters
• Grease filter cleaning reminder
• Exhaust duct diameter 125 mm

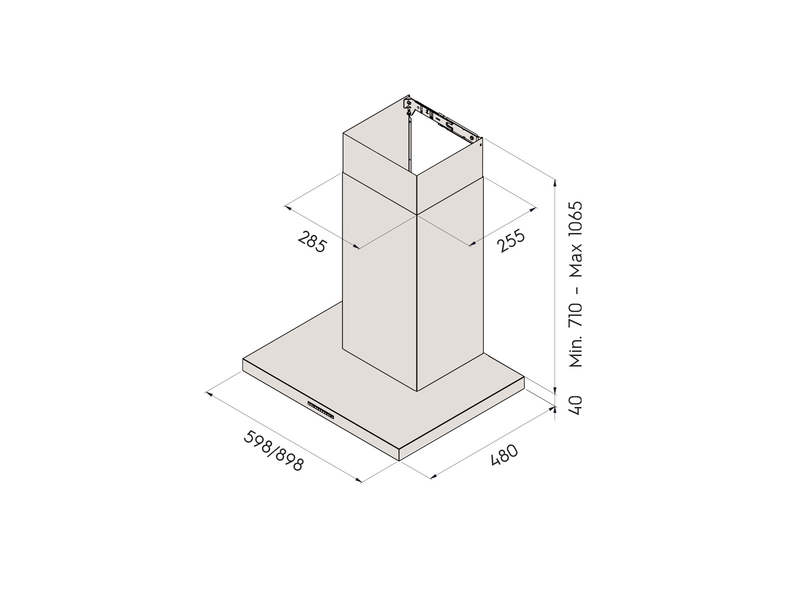

• 898 x 475 x 710–1065 mm (l x w x h)
• Extension ducts 1130–1900 (min.–max.) (optional accessory)

This product description is an automated translation of the original Finnish description.
