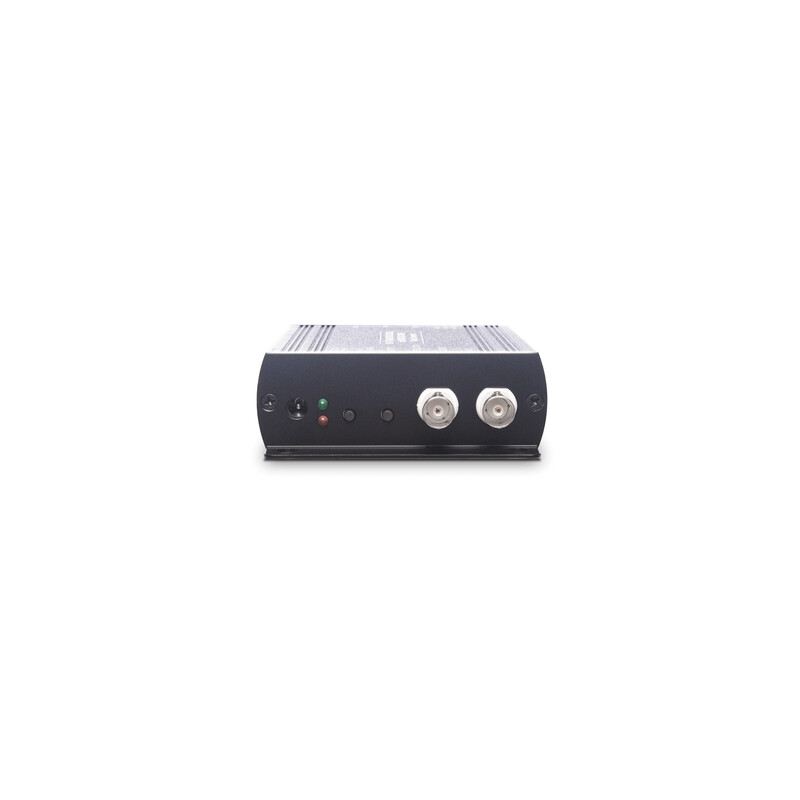

AV-EQUIPMENT CONVERT BNC- HDMI+BNC LOOPOUT

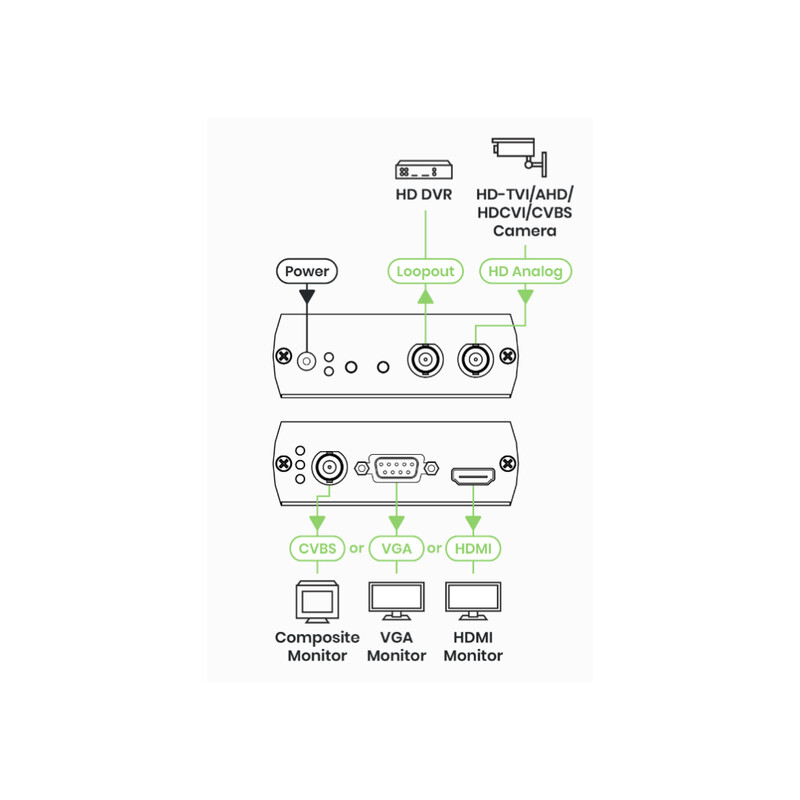

AD001HDE is a converter for CVBS and HD surveillance cameras. It converts CVBS/TVI/CVI/AHD video to HDMI/VGA/composite video (one output at a time). It also features a loop out port for connecting a DVR, CVBS display, or another surveillance camera. It is the perfect solution for adding a new display to an existing surveillance camera system.

Features

• Converts HD-TVI, AHD, HDCVI, NTSC/PAL and 960H to HDMI, VGA and composite video
• Maximum input resolution: 8MP@15Hz
• Maximum HDMI & VGA resolution: 1080p@60Hz
• Built-in loop out output for additional CVBS display or DVR recorder
• HDMI/VGA/CVBS output (one signal at a time)

Technical specifications:

• Video format: HDTVI/ AHD/ HDCVI/ HDMI/ VGA/ CVBS
• Maximum input resolution: 8MP@15Hz
• Maximum HDMI resolution: 1080p@60Hz
• Maximum VGA resolution: 1920x1080@60Hz
• Maximum CVBS resolution: 480i@60Hz (NTSC), 576i@50Hz (PAL)
• Video IN: 1 x BNC (75? 1Vpp)

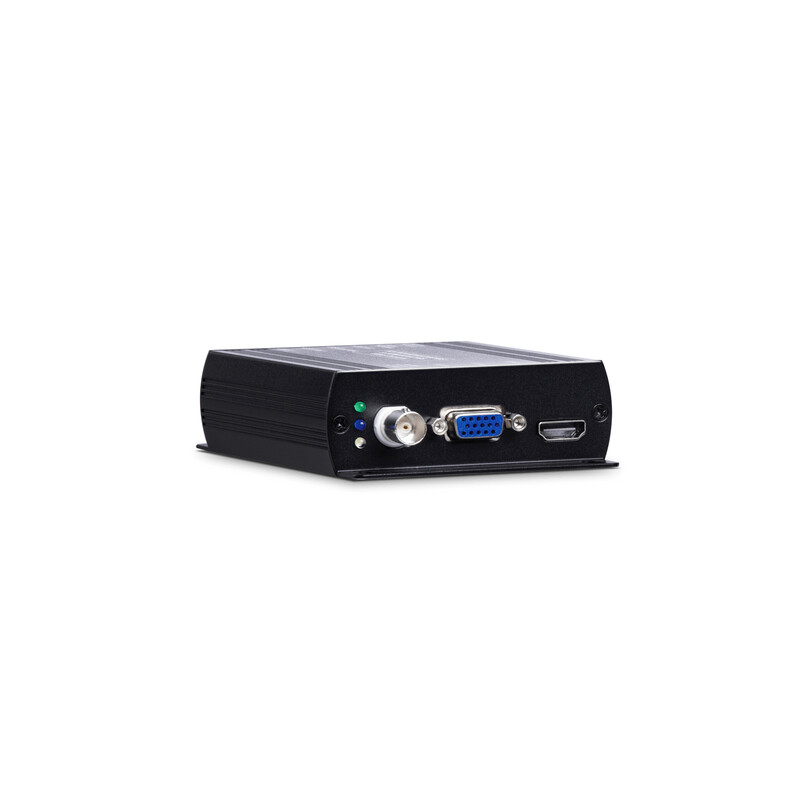

• Video OUT: 1 x HDMI Type A, 1 x D-SUB 15, BNC (75? 1Vpp)
• Video Loop-Out: 1 x BNC (75? 1Vpp)
• Switches: 2 x Tact switch
• Power supply: 12V 500mA
• Power consumption: 250mA
• Operating temperature: 0 - 55?
• Storage temperature: -20 - 85?
• Operating humidity: ? 95%

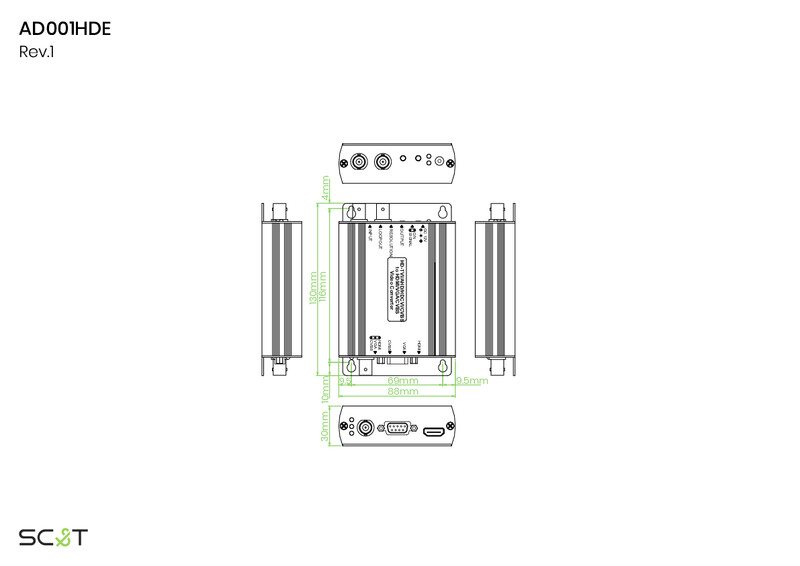

• Dimensions: 88 x 130 x 30mm
• Weight: 270g
