AV-EQUIPMENT HD-SDI/HDMI CONVERTER

SDI01 is an SDI-to-HDMI converter that allows you to connect a professional SDI video device to any HDMI display.

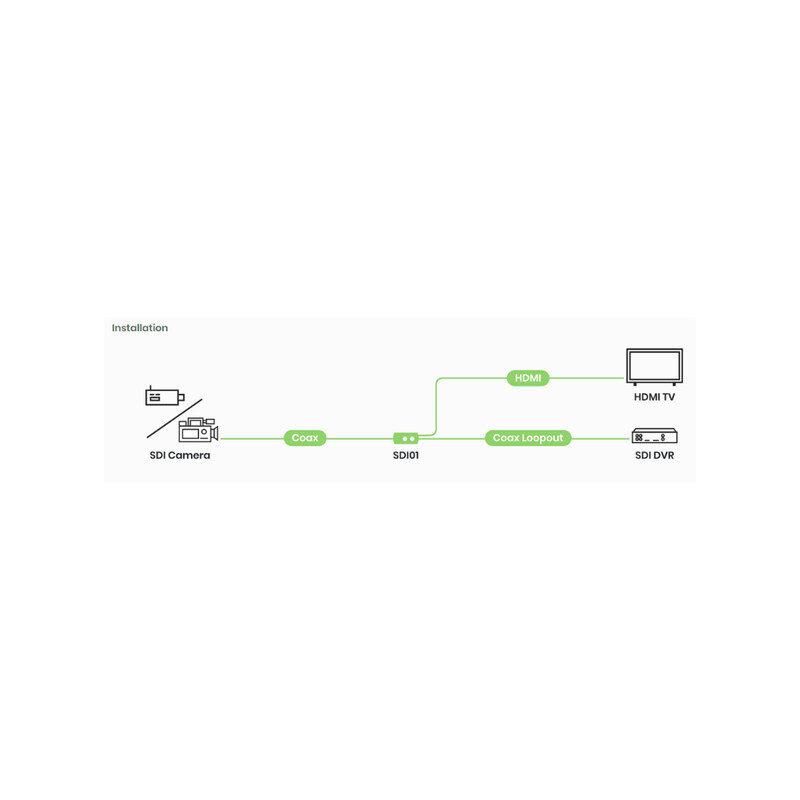

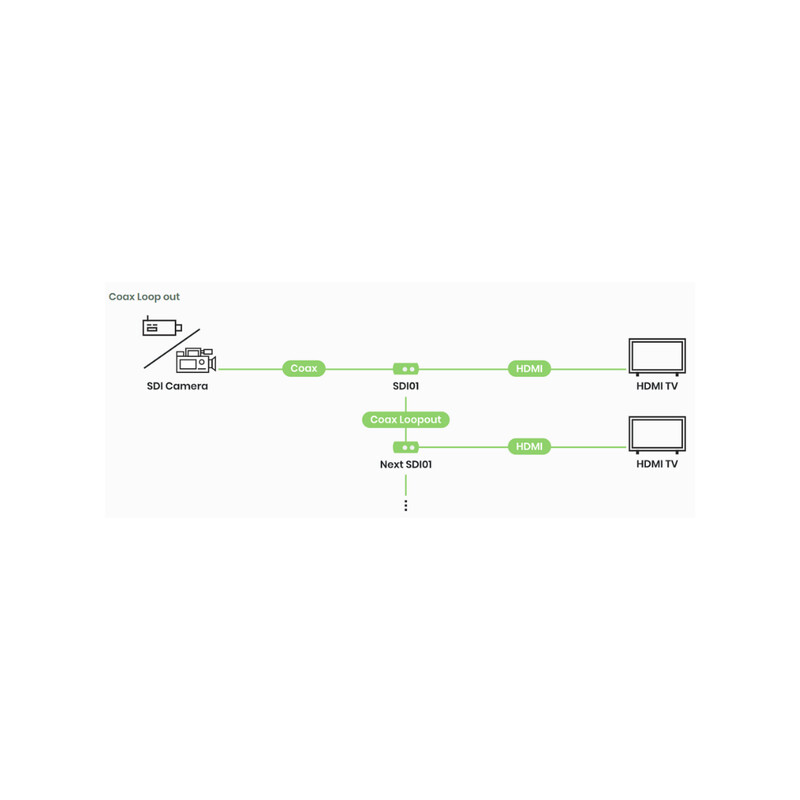

It also features a BNC Loop-Out for an additional SDI display. It is an ideal solution for control rooms and studios.

Technical specifications:

• Compatibility: SMPTE 259M, SMPTE 292M, SMPTE 424M
• Maximum video resolution: 3G-SDI, 1080p@60Hz
• Maximum transmission distance: 100M at 3G-SDI
• Video IN: 1xBNC
• Video OUT: 1xHDMI (type A)
• Video Loop-Out: 1xBNC
• Power supply: DC 5V 1A
• Power consumption: 750mA (Max)
• Operating temperature: 0 - 55?
• Storage temperature: -20 - 85?
• Operating humidity: ? 95%
• Dimensions: 67 x 120 x 27mm
• Weight: 200g
