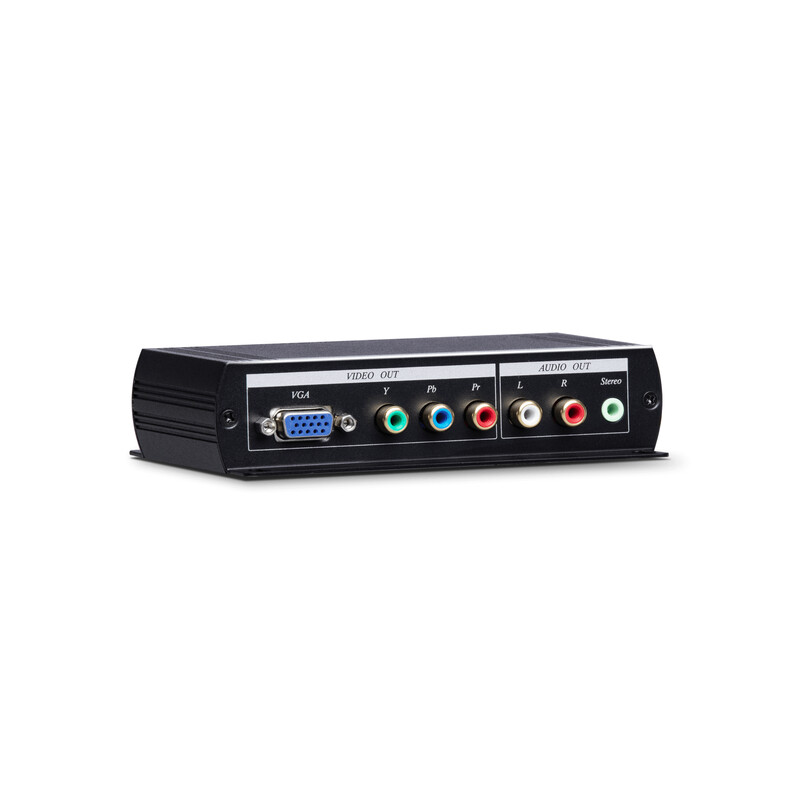

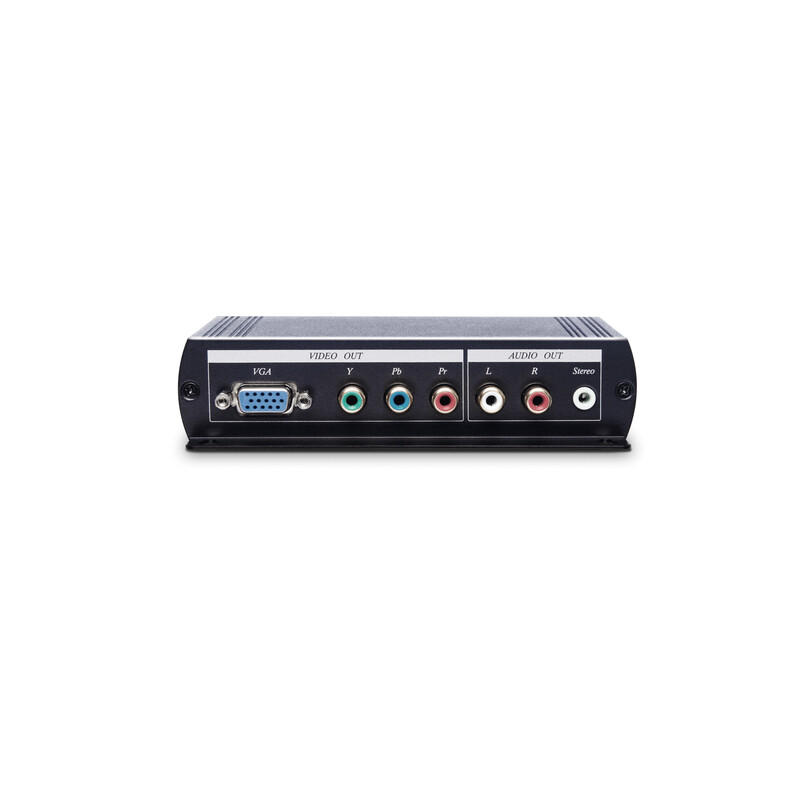

AV-EQUIPMENT HDMI VGA/COMPOSITE CONVERTER

HVY01 is a signal converter that converts an HDMI input to either VGA or component video output with stereo audio.

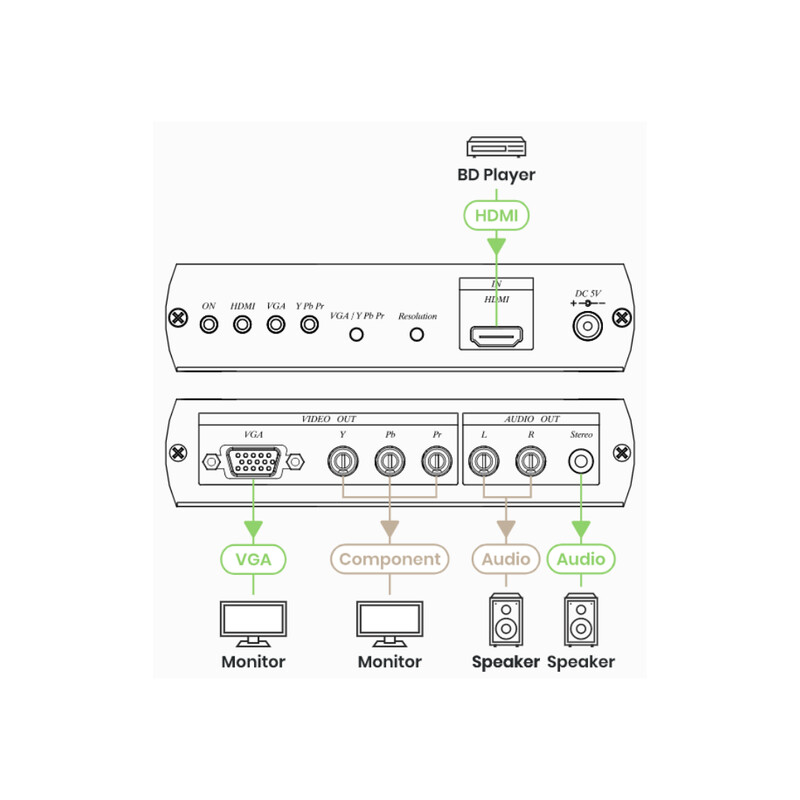

You can therefore display the image from an HDMI source on a display, projector, or television equipped with a component video or VGA connection but lacking an HDMI input. When using the VGA connector, you can route the audio either to the display or to a separate amplifier via RCA or 3.5mm jack connector.

Technical specifications:

• Compatibility: HDMI, VGA, component video
• Maximum HDMI resolution: 1080p@60Hz
• Maximum VGA resolution: 1920x1200@60Hz
• Maximum component resolution: 1920x1200@60Hz
• Video bandwidth: 1.65 Gbps
• Video IN: 1 x HDMI Type A
• Video OUT: 1 x DB15 (High Density, 75? 0.7Vp-p), 3 x RCA (Y 75? 0.7Vp-p, Pb Pr 75? 0.3Vp-p)
• Audio: 1 x 3.5mm jack (10K?, 1 Vp-p), 2 x RCA (10K?, 1 Vp-p)
• Power supply: DC 5V 2A
• Power consumption: 750 mA max
• Operating temperature: 0 - 55?
• Storage temperature: -20 - 85?
• Operating humidity: ? 95%
• Dimensions: 140 x 95 x 32mm
• Weight: 300g
