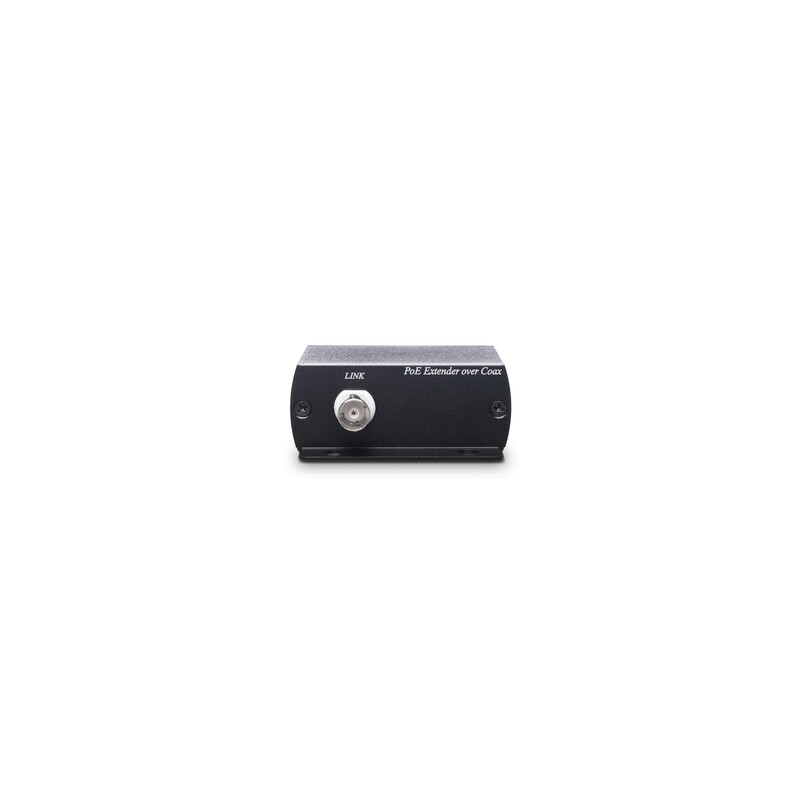

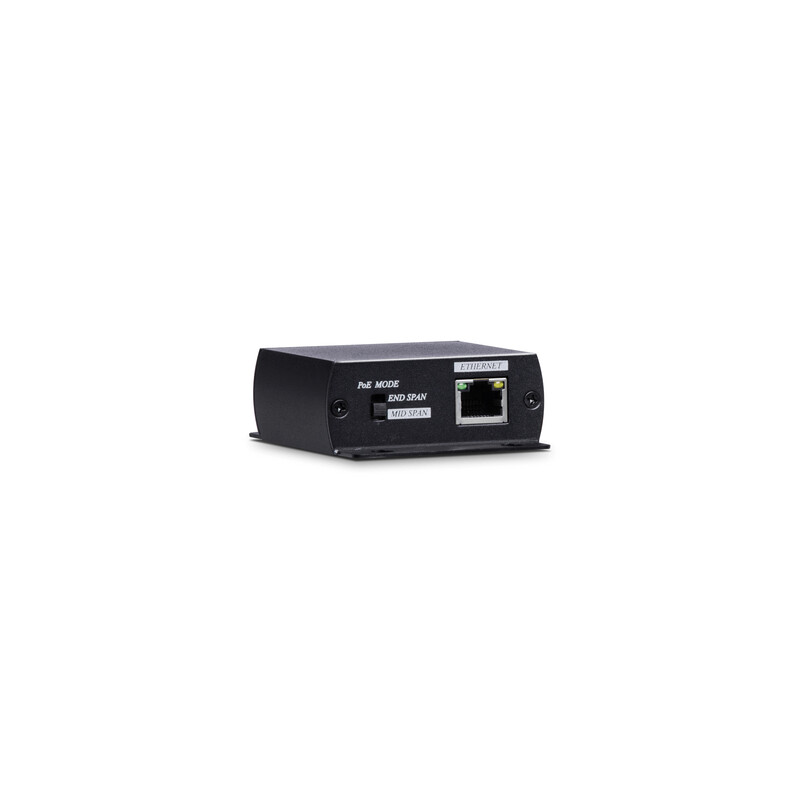

MEDIACONVERTER PASS.POE AND ETH. OVER COAX

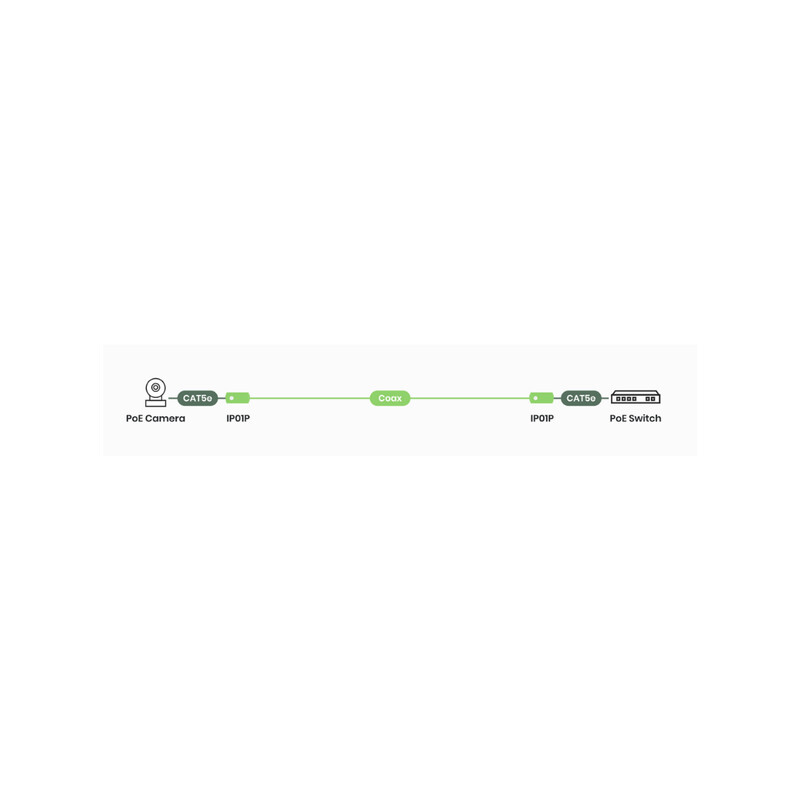

IP01P is a PoE extender pair that transmits the signal over coaxial cable to any TCP/IP 10/100BaseT device up to 300 meters away. It is the perfect solution for replacing an analog surveillance camera with a PoE camera without replacing the existing coaxial cable. The extender pair receives power from a PoE switch or injector; no separate power supply is required.

Transmission speed, distance, and PoE power at the receiving end depend on the coaxial cable, for example:
RG59 100M 10Mbps
RG59 200M 10Mbps
RG6U 100M 100Mbps
RG6U 300M 10Mbps

Features:

• Transmits PoE signal over coaxial cable
• Signal transmission up to 300 meters over RG6U coaxial cable
• Power supply via PoE switch or external power source
• Network speed up to 100Mbps

Technical Specifications:

• Compatibility: IEEE 802.3af, IEEE802.3at
• Network speed: 10/100Mbps
• Input: 1 x RJ45
• Output: 1 x BNC
• Power consumption: 1.25W
• Operating temperature: 0 - 55°C
• Storage temperature: -20 - 85°C
• Operating humidity: ? 95%
• Dimensions: 67 x 87 x 27mm
• Weight: 150g
