SPLITTER HDMI SPLITTER, AUDIO EXTRACTOR

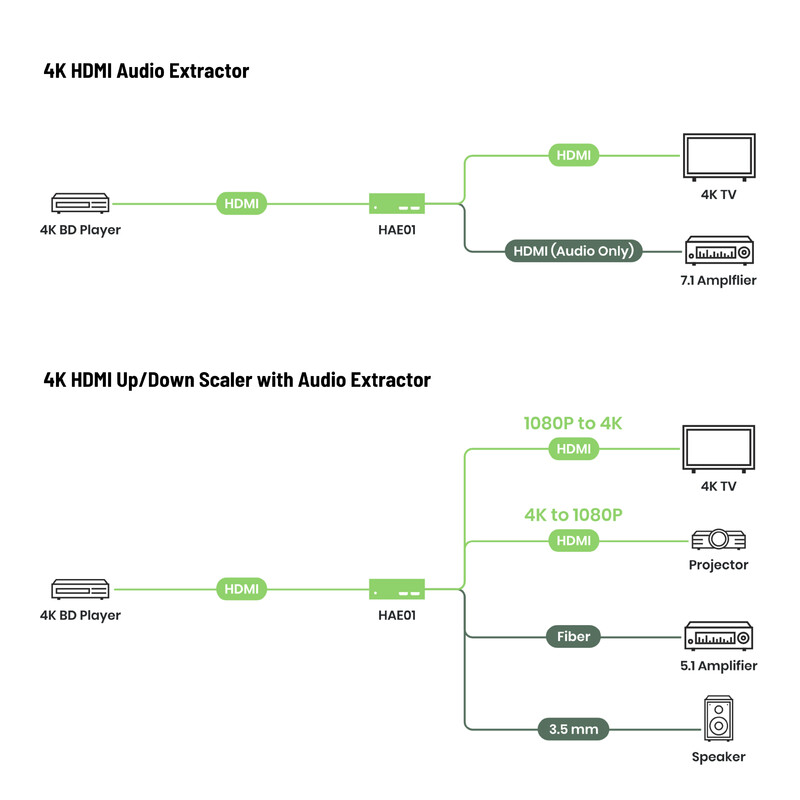

HAE01 is a multifunctional HDMI splitter with a built-in audio extractor and video scaling function. It splits the HDMI signal to two displays and upscales or downscaling resolution from 1080p to 4K or vice versa, allowing it to display one video at different resolutions on two screens. The splitter can also extract the audio signal from HDMI and send it either digitally via SPDIF or analogically via a 3.5 mm jack connector.

With the audio extraction function, you can easily integrate a high-end audio amplifier and HDMI displays to achieve an superior visual and audio experience.

• Resolution up to 4K@60Hz 4:4:4
• Two HDMI outputs
• Toslink connection (digital audio) and 3.5 mm jack connection (analog audio)
• Supports video upscaling and downscaling
• Supports chroma resampling function, converting 4K HDMI 4:4:4 / 4:2:2 to 4:2:0

Technical Specifications

• Compatibility: HDMI 2.0, HDCP 2.2, 3D, HDR
• Maximum video resolution: 4K@60Hz 4:4:4
• Video bandwidth: 18 Gbps
• Audio format: 7.1 LPCM 192KHz, Dolby TrueHD, DTS-HD MA
• Video IN: 1 x HDMI Type A
• Video OUT: 2 x HDMI Type A
• Digital audio: Toslink
• Analog audio: 1 x (3.5mm) jack connector
• RS232 interface: 1 x DB9 female / 3.5mm stereo jack
• Power supply: DC 5V 1A
• Power consumption: 4W
• Operating temperature: -10 - 45°C
• Storage temperature: -30 - 70°C
• Operating humidity: ≤ 95%
• Dimensions: 109.6 x 110.5 x 36mm
• Weight: 270g
