TRANSMITTER EXTENDER HDMI+KVM 150M

HKM01E is an HDMI+KVM extender pair that transmits HDMI and USB signals up to 150m over CAT5e cable. Its transmitter unit features a Loop-out port for an additional local HDMI display, and the receiver unit has two USB ports for connecting a keyboard and mouse. It is an ideal solution for surveillance camera systems, digital signage, home network integration, etc.

• Maximum resolution 1080p@60Hz
• Maximum transmission distance up to 160 meters over CAT6 cable

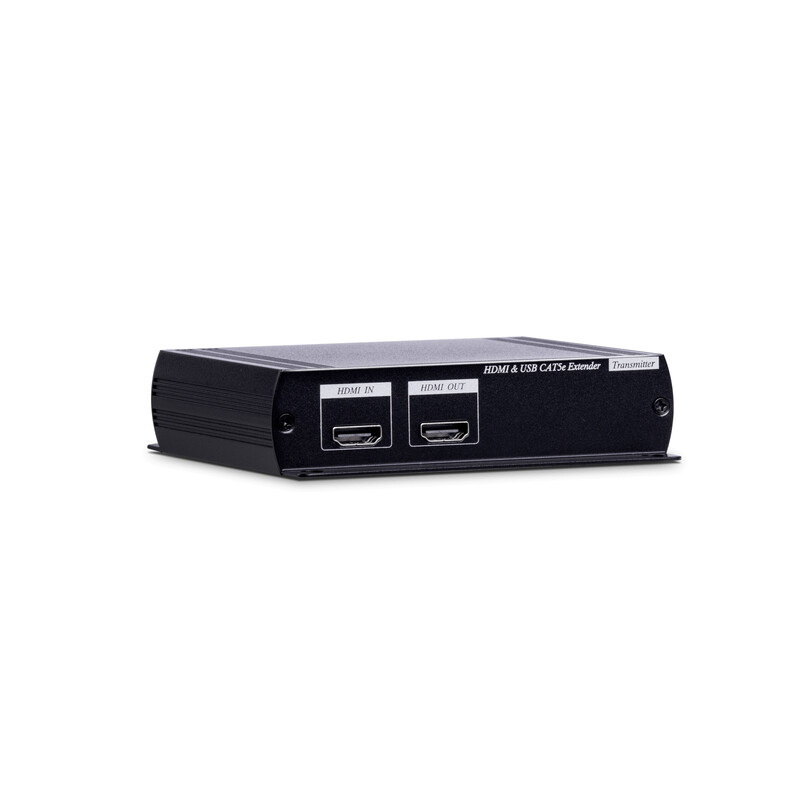

• Built-in HDMI loop-out port on transmitter for an additional HDMI display

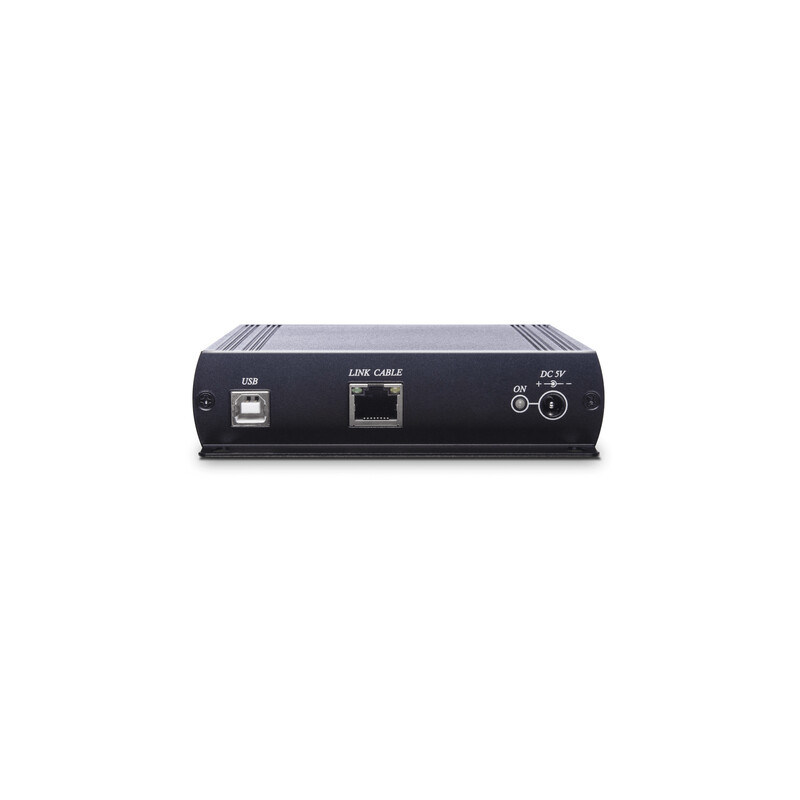

• USB-B port on transmitter

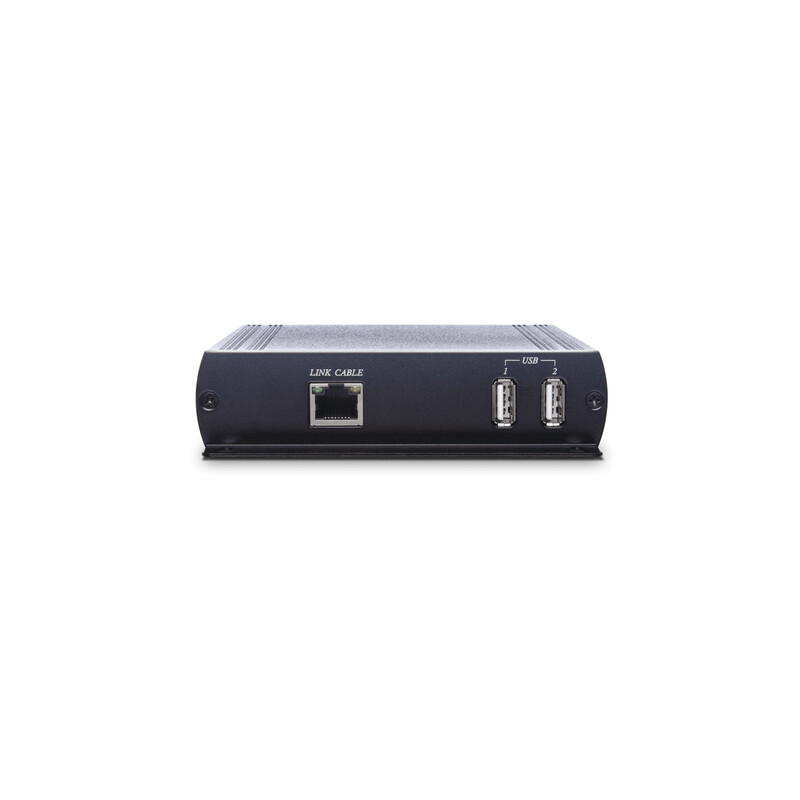

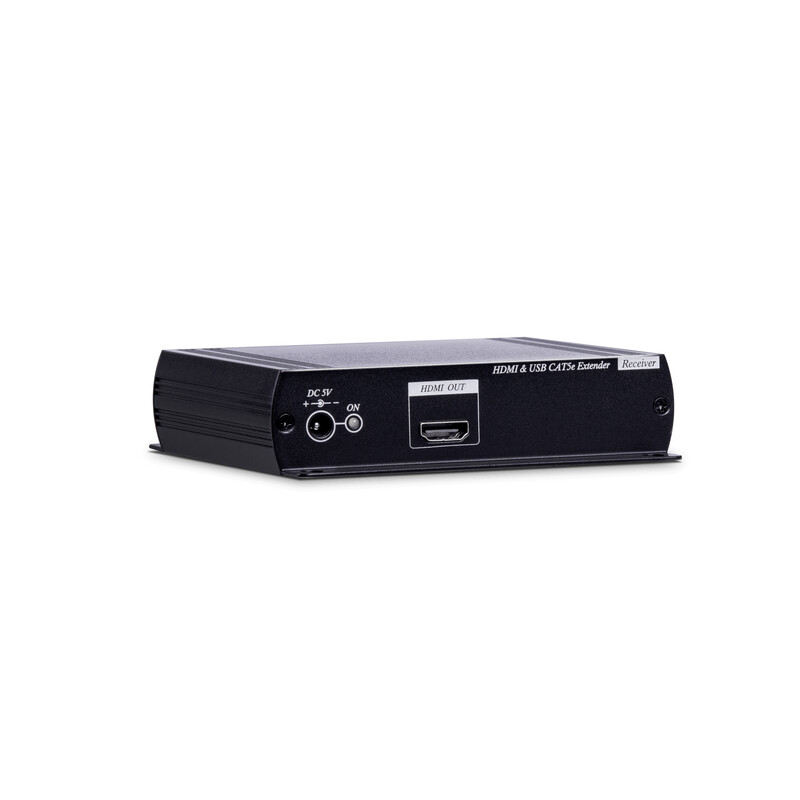

• Receiver has 1 HDMI and 2 USB-A ports
• For longer distances, SR01X (IP repeater) is also available

Technical specifications

• Maximum video resolution: 1080p@60Hz
• Maximum transmission distance: 150m over CAT5e, and 160m over CAT6
• Video IN: transmitter 1 x HDMI Type A, receiver 1 x RJ45
• Video OUT: transmitter 1 x RJ45, receiver 1 x HDMI Type A
• Video Loop-Out: 1 x HDMI Type A
• USB interface: transmitter 1 x USB Type B, receiver 2 x USB Type A
• Power supply: transmitter DC 5V 2A, receiver DC 5V 2A
• Power consumption: transmitter 1200mA, receiver 800mA
• Operating temperature: 0 - 55°C
• Storage temperature: -20 - 85°C
• Operating humidity: ? 95%
• Dimensions: transmitter 125 x 125 x 30mm, receiver 25 x 125 x 30mm
• Weight: transmitter 355g, receiver 350g

This product description is an automated translation of the original Finnish description.
