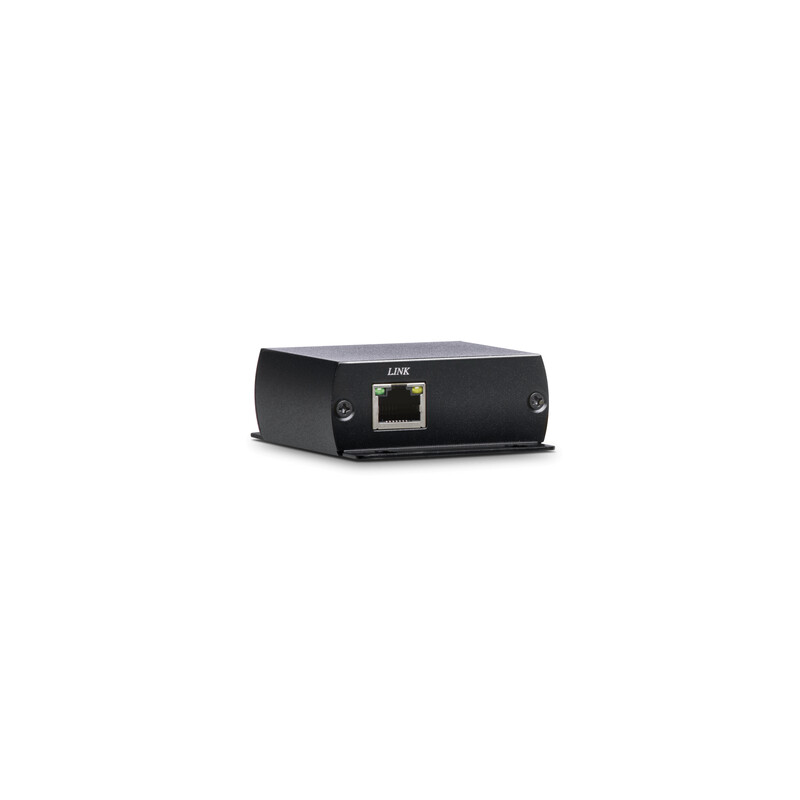

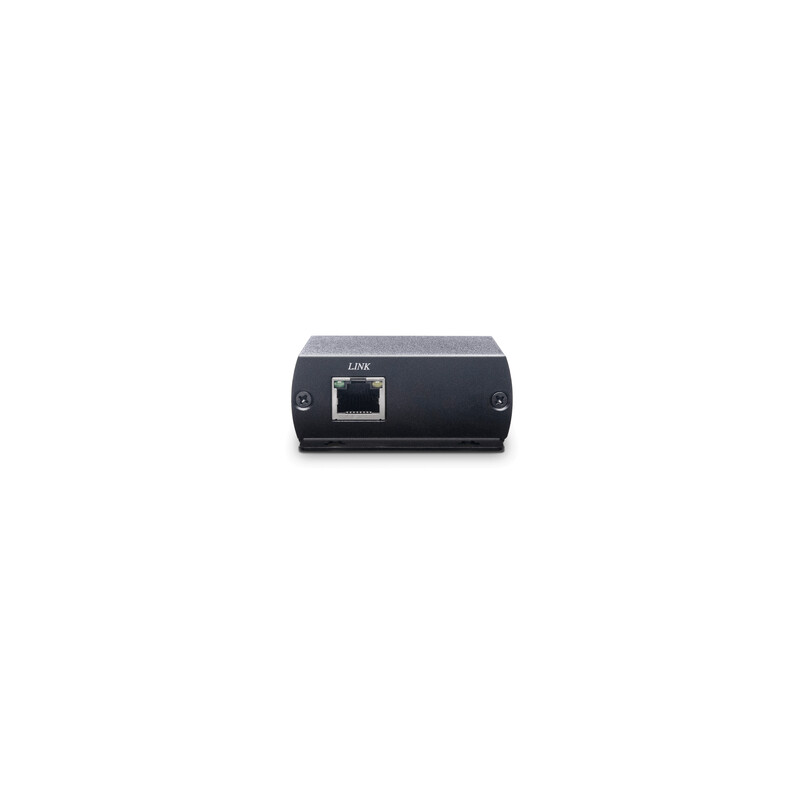

TRANSMITTER HDMI EXTENDER MAX 60M

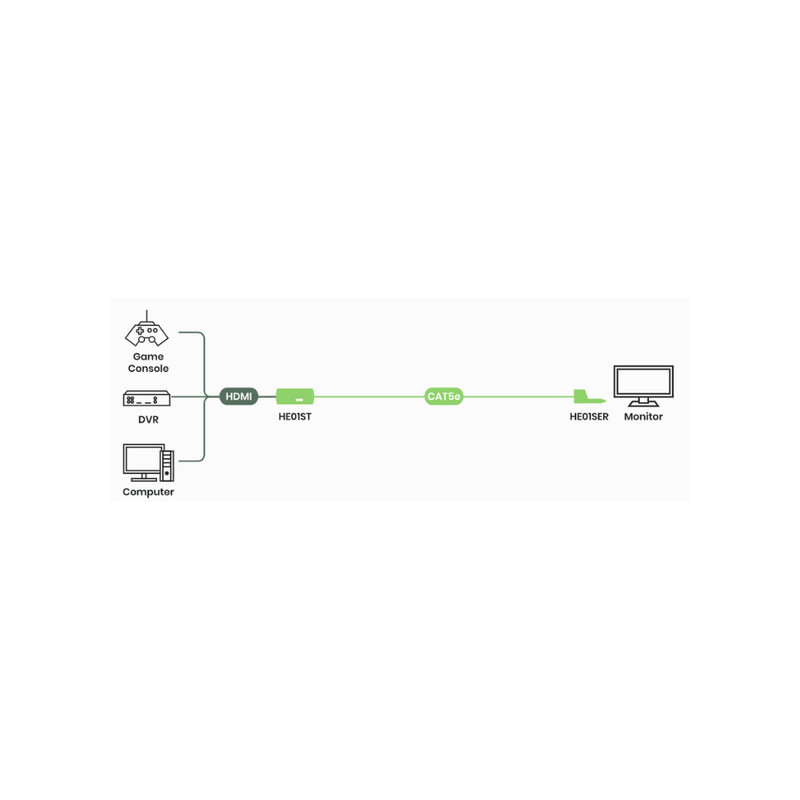

HE01SE is an HDMI extender that uses an Ethernet cable to extend HDMI signals up to 45 meters (CAT6) at 1080p resolution. The transmitter unit supports automatic EDID backup functionality, which stores the desired resolution and restores it when needed. The receiver unit is a dongle-style receiver with an HDMI connector, allowing direct connection to an HDMI device without additional HDMI cables, and it does not require a separate power supply.

• Resolution up to 1080p@60Hz
• Signal extension up to 45 meters at 1080p resolution using CAT6 cable
• Over CAT5e cable: 40 meters at 1080p
• Receiver unit (HE01SER) does not require external power

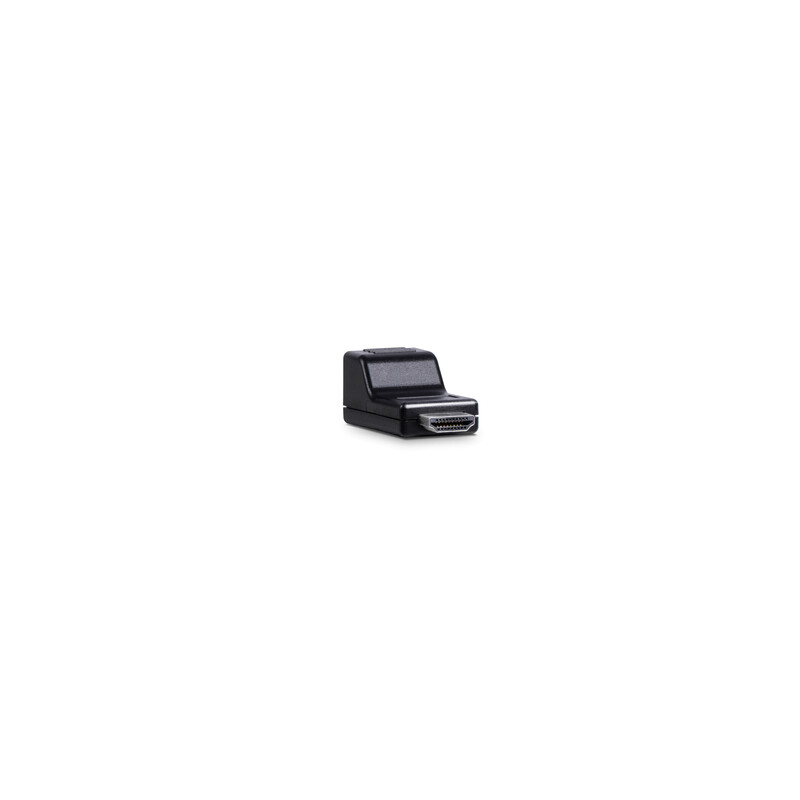

• Receiver is dongle-style and does not require a separate HDMI cable; connects directly to the display
• Supports EDID management for setting and restoring resolutions

Technical Specifications

• Compatibility: HDMI 1.3, HDCP, 3D
• Maximum video resolution: 1080p@60Hz
• Maximum transmission distances: 60m at 1080i, 40m at 1080p
• Video bandwidth: 2.25 Gbps
• Input connector: transmitter 1 x HDMI female Type A, receiver 1 x RJ45
• Output connector: transmitter 1 x RJ45, receiver 1 x HDMI female Type A
• Link cable: Cat5 or better
• Power supply: DC 5V 1A
• Power consumption: 600mA
• Operating temperature: 0 - 55°C
• Storage temperature: -20 - 85°C
• Operating humidity: ≤ 95%
• Dimensions: transmitter 67 x 91 x 27mm, receiver 57.5 x 24 x 20.2mm
• Weight: transmitter 140g, receiver 20g

This product description is an automated translation of the original Finnish description.
