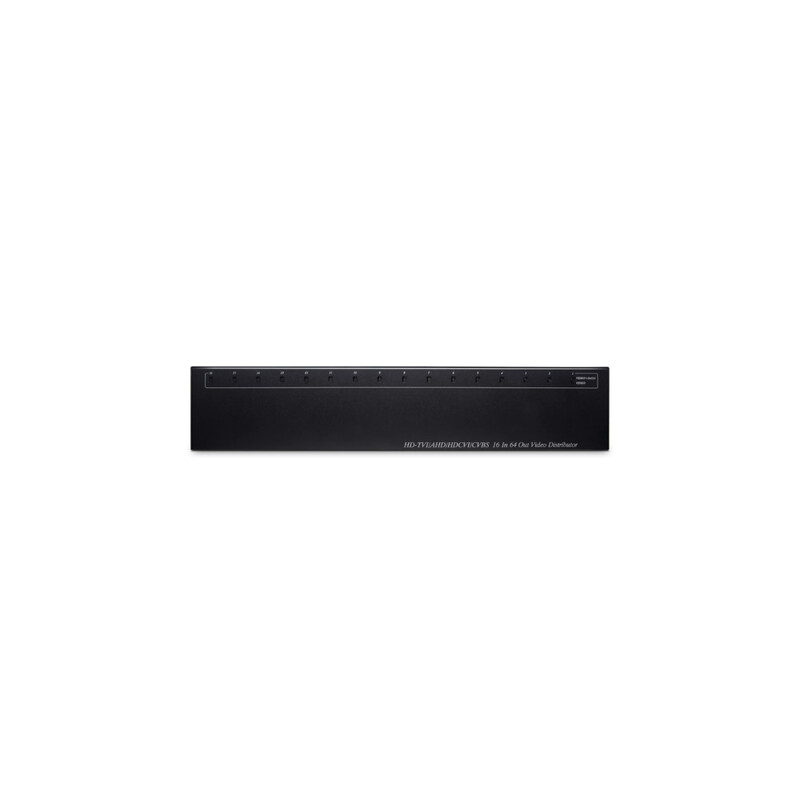

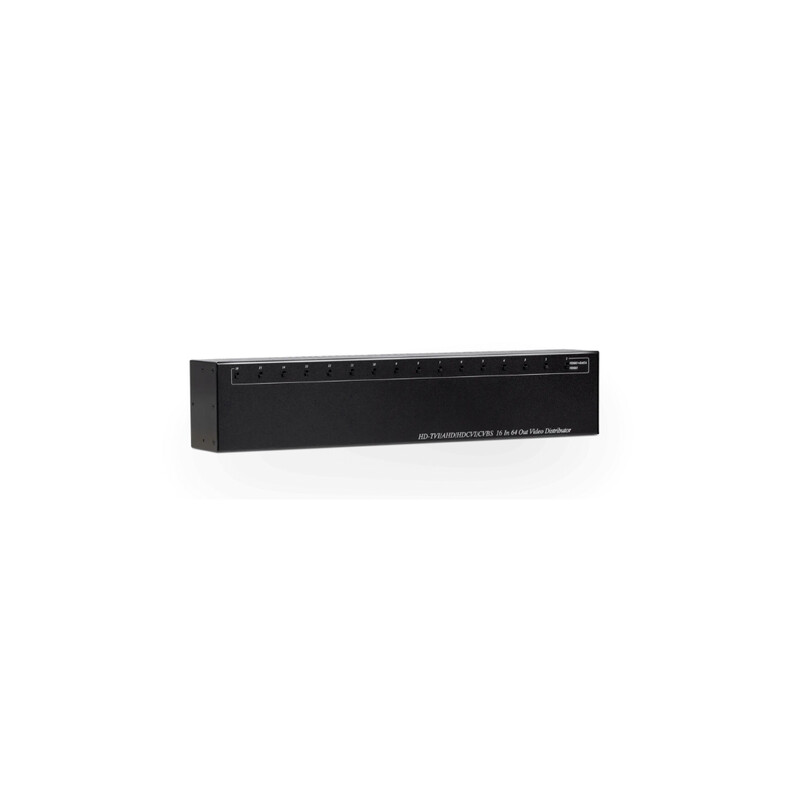

VIDEO DIVIDER 16X64 HD-TVI/AHD/HDCVI/CVBS 2U

CD1664HD is a video signal distributor capable of splitting 16 HD-TVI/AHD/HDCVI/CVBS signals into 64 signals with resolutions up to 4K (8MP).

• Expands and distributes 16 video signals into 64 signals
• Supports HD-TVI, AHD, HDCVI, 960H, NTSC, PAL video formats
• Resolution up to 8 MP (4K)
• Supports UTP (Up the Coax)
• TVS protection

Technical Specifications

• Video Format: HD-TVI, AHD, HDCVI, 960H, NTSC, PAL
• Maximum Video Resolution: 4K
• Video Bandwidth: 100MHz 0.1dB Gain Flatness
• Video In: 16 x BNC (1V p-p, 75Ω)
• Video Out: 64 x BNC (1V p-p, 75Ω)
• Power Supply: DC 12V 1200mA
• Power Consumption: 960mA (Typical), 1150mA (Max)
• Operating Temperature: 0 - 55℃
• Storage Temperature: -20 - 85℃
• Operating Humidity: ≥ 95%
• Dimensions: 483 x 91.5 x 88.4mm
• Weight: 2700g
