ARB.STR.UTL IMX. 24VAC/DC IC60 A9A26948
Product code
3254023

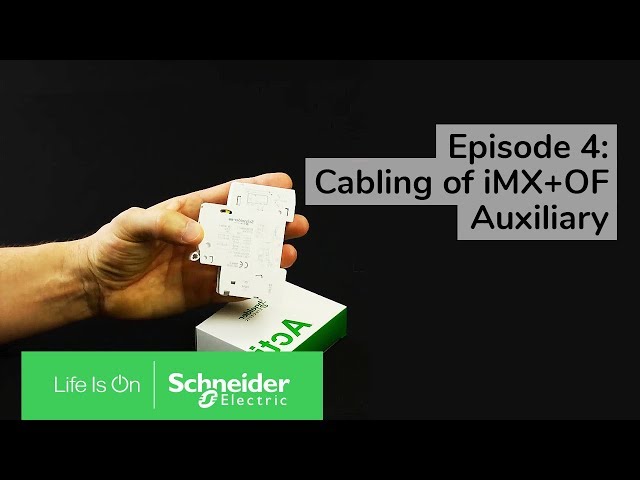

Voltage release, iMX+OF, tripping unit, 12..24 VAC
Acti 9 series remote trip devices
- For remote tripping of circuit breakers or residual current devices
- Control voltage triggers the breaker
- Connected in parallel with the breaker
Product details
Technical specifications
Product class (ETIM)Auxiliary device for distribution board devices (EC001286)
Device fittingMiniature circuit breaker (MCB)
FunctionShunt release (for power circuit breaker)
Width in number of modular spacings1
Number of contacts as normally open contact0
Number of contacts as normally closed contact0
Number of contacts as change-over contact1
Number of fault-signal switches0
Rated switch current6 A
Rated voltage24 V
Voltage typeAC/DC
With auto test for earth leakage functionno
Suitable for max. number of poles main contact unit (total)4
Suitable for max. current main contact unit63 A
Product codes
SAPGCO321
STK3254023
PLC3254023
GTIN/EAN3606480087912
Manufacturer part numberA9A26948
Vendor material number3254023
Basic information
Package measurements (L x W x H)95 x 80 x 77 mm
Package volume0.585 l
Package weight0.082 kg
Base uniteach
Package units1 / 8
Package contents1
UNSPSC39121614
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
