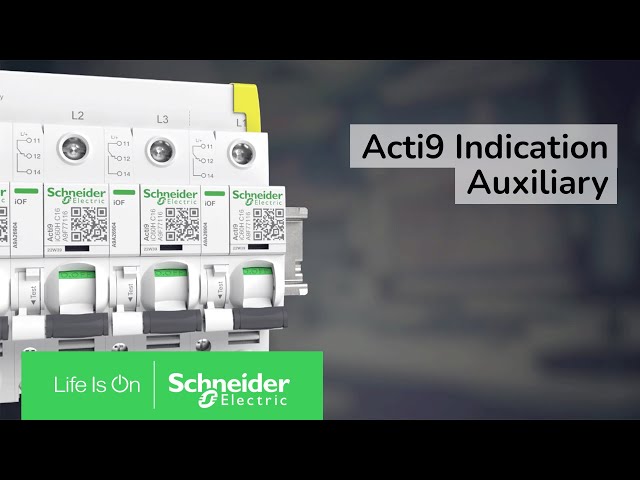

AUXILIARY CONTACT ACTI 9 ACTI9 IOF 1OC 2-100MA
Product code
3227021
Acti9 iOF auxiliary contact 2-100 mA current rail up with double terminal This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Auxiliary device for distribution board devices (EC001286)
Device fittingEarth leakage circuit breaker and miniature circuit breaker (MCB)
FunctionAuxiliary switch
Width in number of modular spacings0.5
Number of contacts as normally open contact0
Number of contacts as normally closed contact0
Number of contacts as change-over contact1
Number of fault-signal switches0
Rated switch current0.002 A
Rated voltage240 V
Voltage typeAC/DC
With auto test for earth leakage functionno
Suitable for max. number of poles main contact unit (total)4
Suitable for max. current main contact unit63 A
Product codes
SAPCZH712
STK3227021
PLC3227021
GTIN/EAN3606482129139
Manufacturer part numberA9A26914
Vendor material number3227021
Basic information
Package measurements (L x W x H)94 x 80 x 21 mm
Package volume0.158 l
Package weight0.04 kg
Base uniteach
Package units12
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
