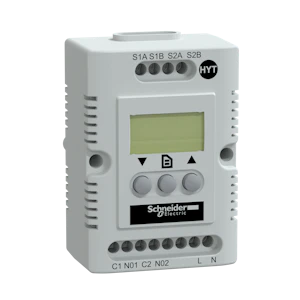

CLIMASYS CC, ELECTRONIC HYGROTHERM, 200…240 V
Product code
3447507
Climasys CC, electronic hygrotherm, 200…240 V, temp -40…80°C, Hr 20…80%
Prisma Plus P system
Spacial SF Prisma Plus P system.
The Prisma P system, compliant with IEC 61439-1 and 2 standards, can be used for electrical switchgear up to 4000 A. It enables electrical, mechanical, and communication features.
Prisma P is suitable for low-voltage distribution and control panels in commercial and industrial buildings, including:
- Telecommunications (data centers, server rooms, network solutions)
- Retail (chains and independent retailers)
- Hotels
- Industrial buildings (logistics, agriculture)
- Healthcare (hospitals, clinics)
- Offices
- Education
- Sports
- Leisure and culture This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Thermostat/hygrostat (enclosure/cabinet) (EC004587)
ModelHygrostat
Rated voltage AC 50 Hz200-240 V
Rated voltage AC 60 Hz200-240 V
Rated current In4 A
Adjustable setting value for relative air humidity20-80 %
Temperature setting range-40-80 °C
Mounting methodClamp mounting
Type of switch functionNormally closed contact and normally open contact
With digital indicationyes
Product codes
SAPHGF592
STK3447507
PLC3447507
GTIN/EAN3606480152597
Manufacturer part numberNSYCCOHYT230VID
Vendor material number3447507
Basic information
Package measurements (L x W x H)50 x 50 x 70 mm
Package volume0.175 l
Package weight0.15 kg
Base uniteach
Package units1 / 135
Package contents–
UNSPSC41112209
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
