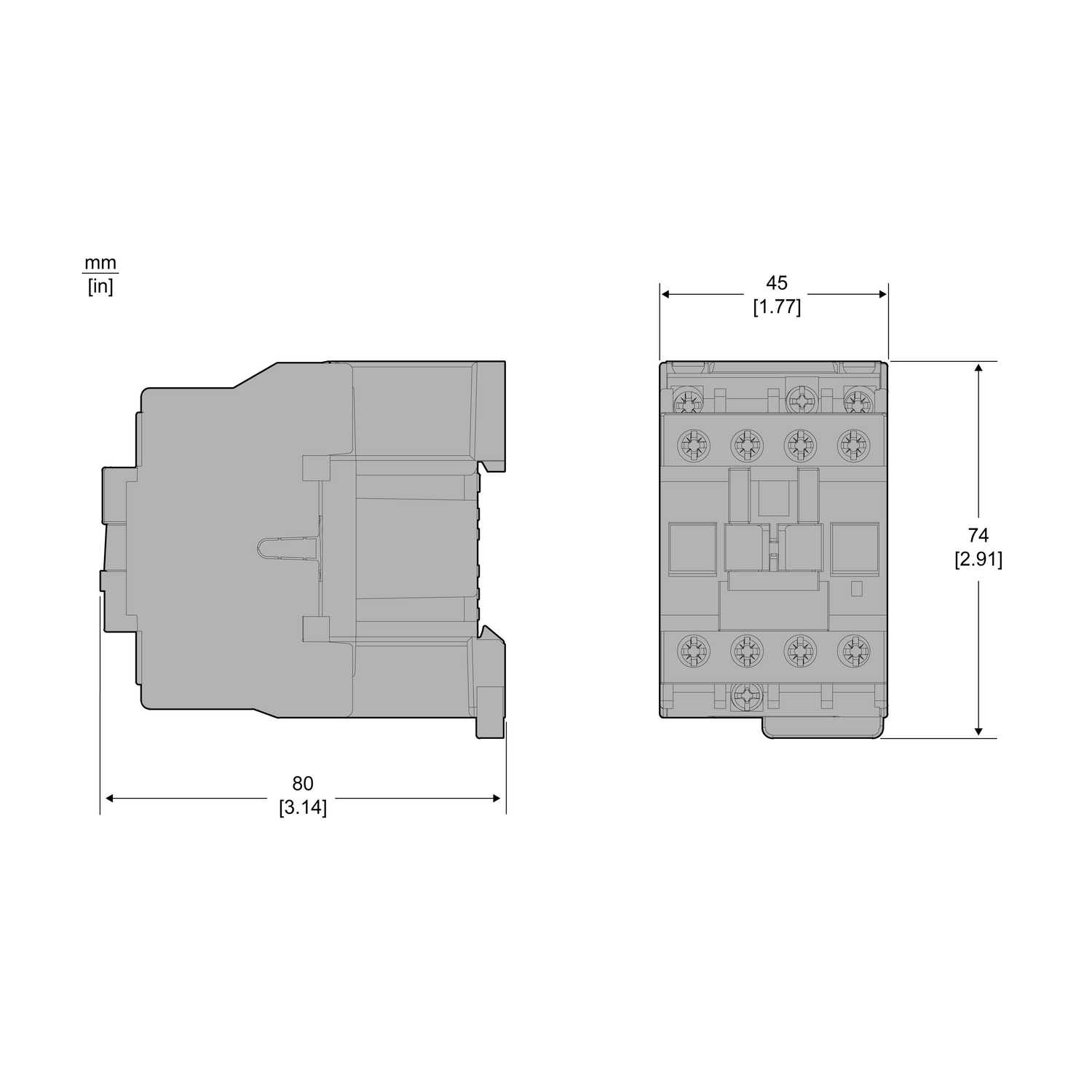

CONTACTOR EASYPACT LC1E,3P(3NO),440V,12A,24V AC ,
Product code
3782980
No product description available.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz24 - 24 V
Rated control supply voltage AC 60 Hz24 - 24 V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Operating voltage AC 50 Hz690 - 690 V
Operating voltage AC 60 Hz690 - 690 V
Rated operation current Ie at AC-1, 400 V25 A
Rated operation current Ie at AC-3, 400 V12 A
Rated operation power at AC-3, 400 V5.5 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Suitable for distribution boardno
Width45 mm
Product codes
SAPDNV484
STK3782980
PLC3782980
GTIN/EAN3606480650352
Manufacturer part numberLC1E1210B7
Vendor material number3782980
Basic information
Package measurements (L x W x H)87 x 77 x 50 mm
Package volume0.335 l
Package weight0.346 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
