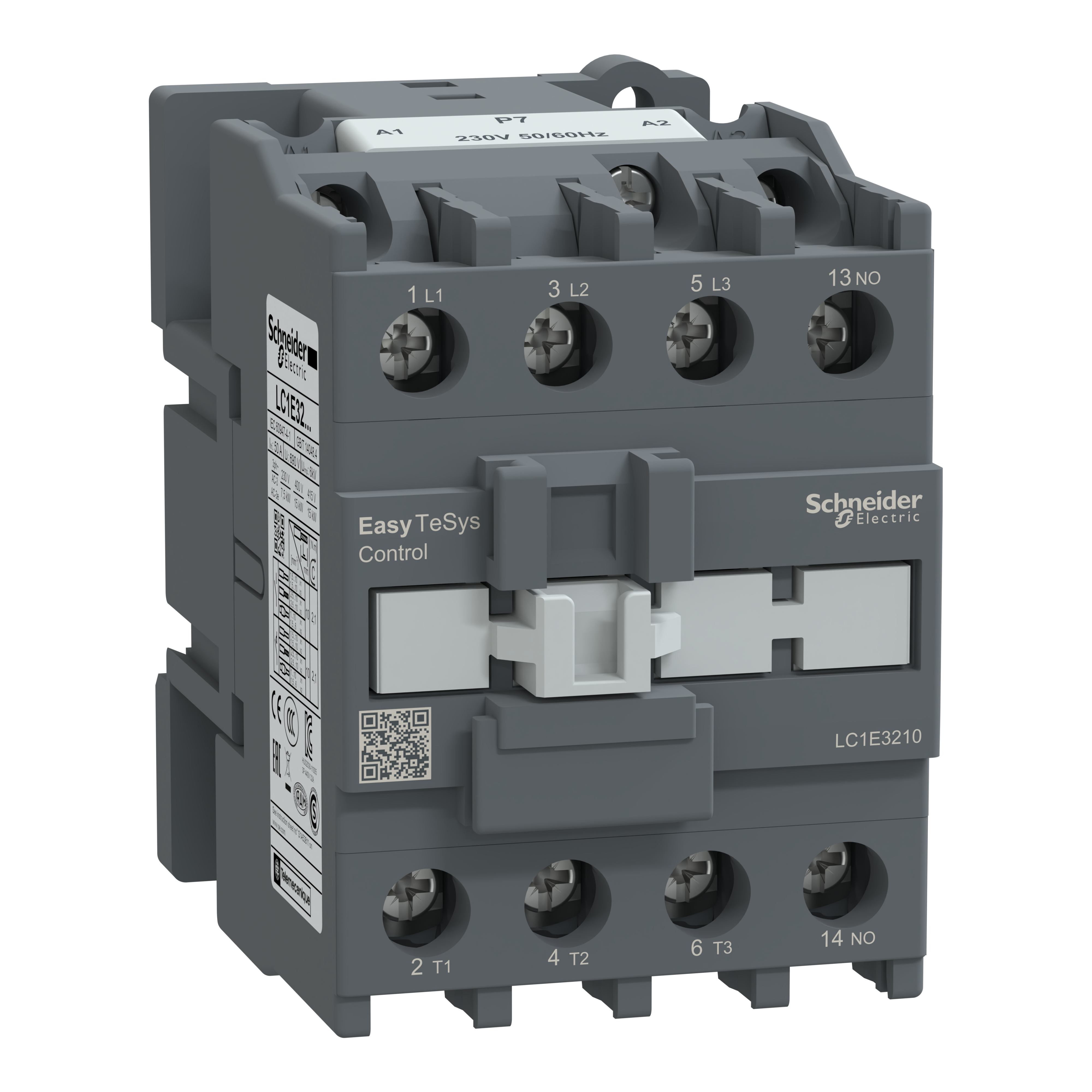

CONTACTOR EASYPACT LC1E,3P(3NO),440V,32A,230V AC
Product code
3782992
No product description available.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz230-230 V
Rated control supply voltage AC 60 Hz230-230 V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Operating voltage AC 50 Hz690-690 V
Operating voltage AC 60 Hz690-690 V
Rated operation current Ie at AC-1, 400 V50 A
Rated operation current Ie at AC-3, 400 V32 A
Rated operation power at AC-3, 400 V15 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Suitable for distribution boardno

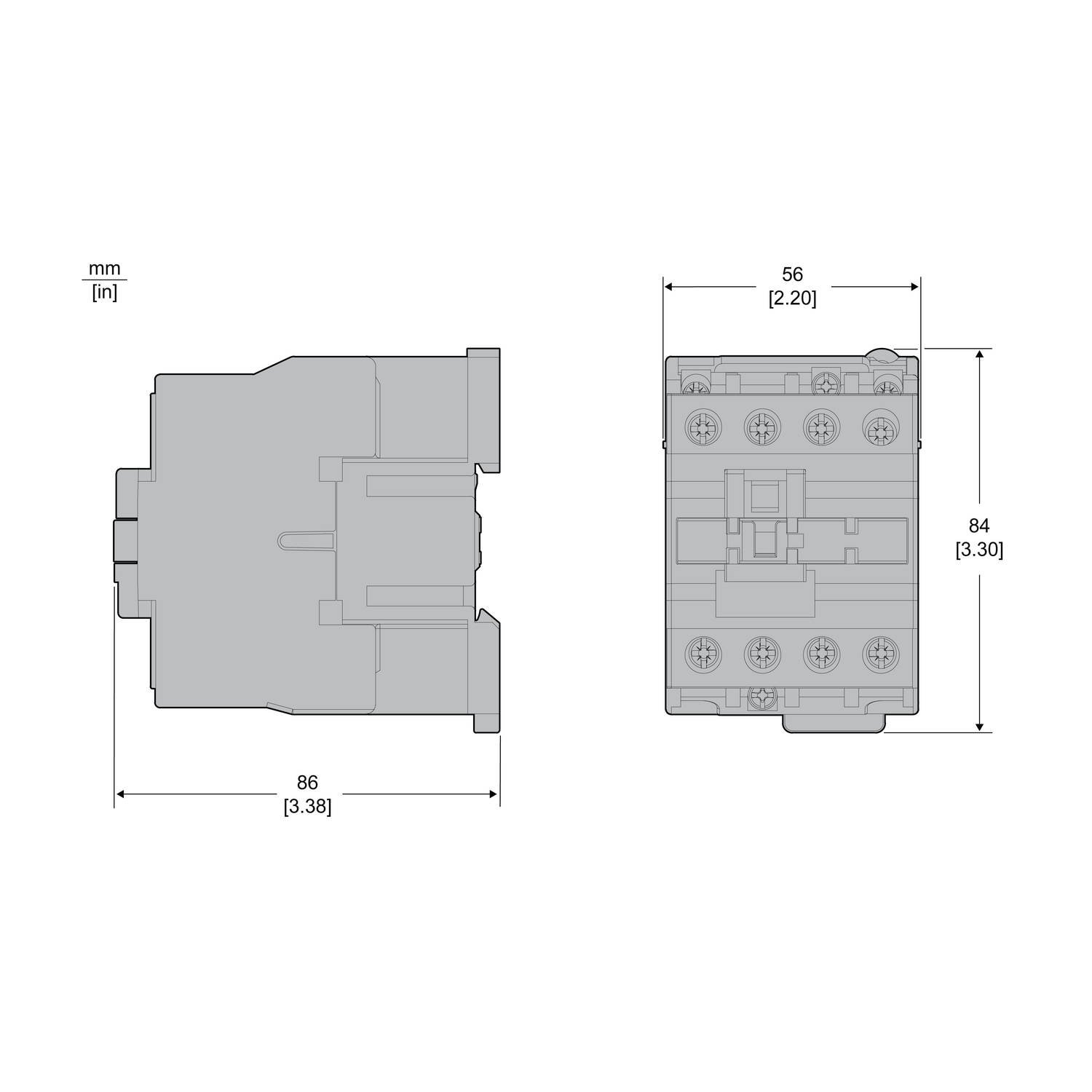

Width56 mm
Product codes
SAPDEX025
STK3782992
PLC3782992
GTIN/EAN3606480894701
Manufacturer part numberLC1E3210P7
Vendor material number3782992
Basic information
Package measurements (L x W x H)90 x 85 x 60 mm
Package volume0.459 l
Package weight0.457 kg
Base uniteach
Package units24
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
