CONTACTOR EASYPACT LC1E,3P(3NO),440V,9A,230V AC ,
Product code
3782976
No product description available.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz230-230 V
Rated control supply voltage AC 60 Hz230-230 V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Operating voltage AC 50 Hz690-690 V
Operating voltage AC 60 Hz690-690 V
Rated operation current Ie at AC-1, 400 V25 A
Rated operation current Ie at AC-3, 400 V9 A
Rated operation power at AC-3, 400 V4 kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact1
Suitable for distribution boardno

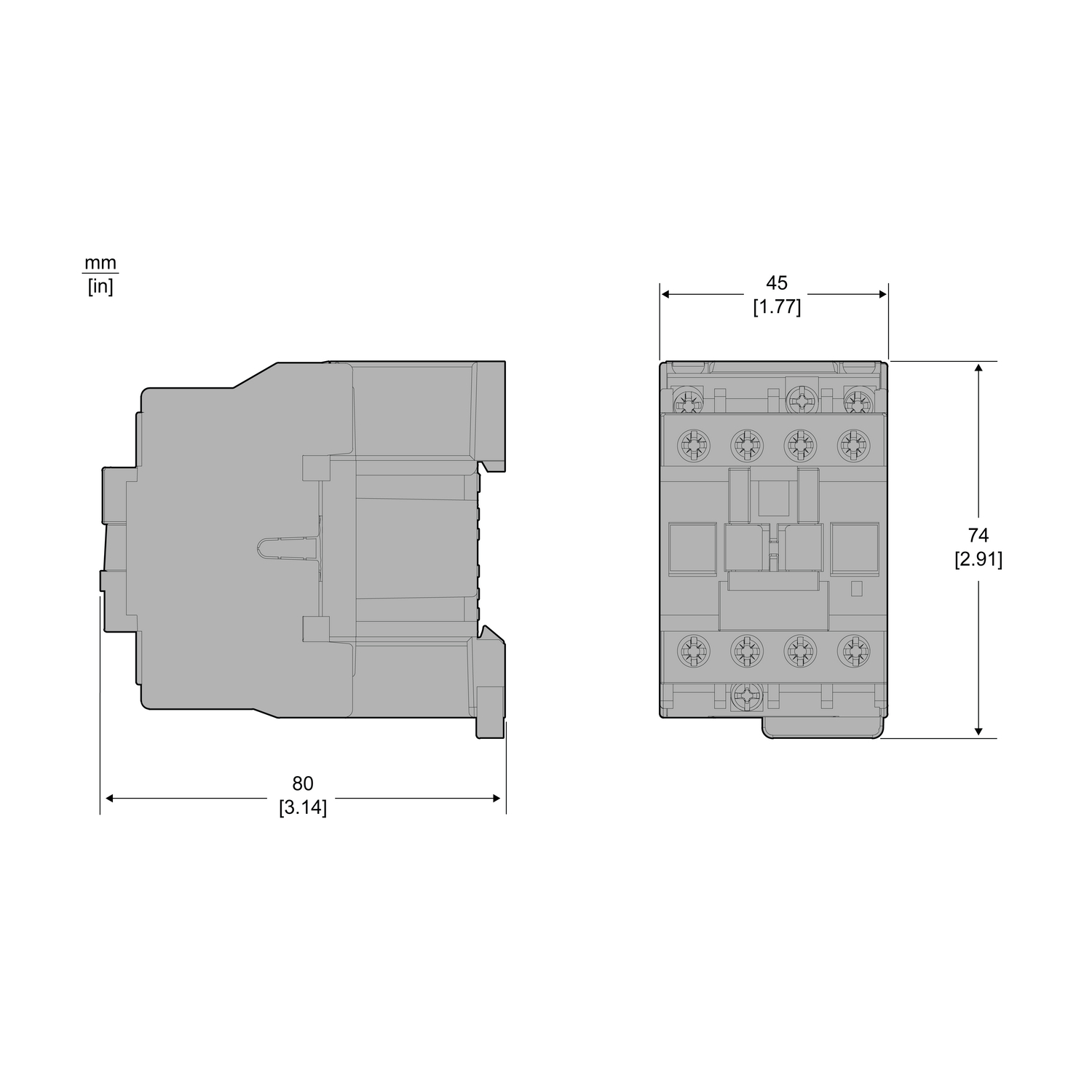

Width45 mm
Product codes
SAPDEX018
STK3782976
PLC3782976
GTIN/EAN3606480894626
Manufacturer part numberLC1E0901P7
Vendor material number3782976
Basic information
Package measurements (L x W x H)85 x 75 x 50 mm
Package volume0.319 l
Package weight0.298 kg
Base uniteach
Package units36
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
Documents (3)
Environment and safety
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
