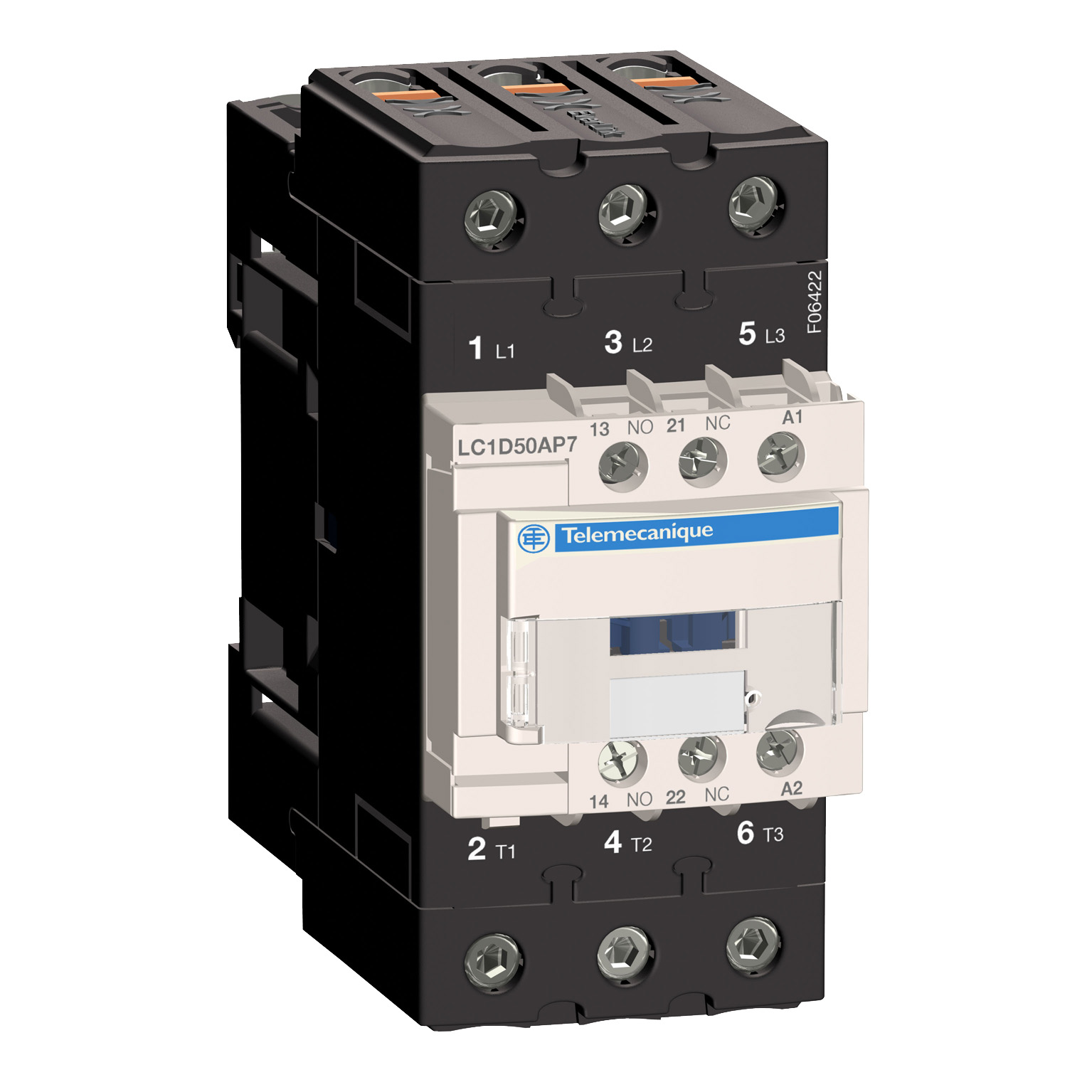

CONTACTOR LC1D50AP7TQ 50A 380VAC

Contactor TeSys LC1-D, 3p- AC-3, 440 V 50A, coil 230 V AC. range of product: TeSys D - product or component type: contactor - device short name: LC1D - contactor application: motor control, resistive load - utilisation category: AC-1, AC-2, AC-3, AC-4 - control circuit type: AC - coil type: AC 50/60 Hz - poles description: 3P - pole contact composition: 3 NO - [Ie] rated operational current: 50 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit, 80 A (<= 60 °C) at <= 440 V AC AC-1 for power circuit - motor power kW: 15 kW at 220...230 V AC 50/60 Hz, 22 kW at 380...400 V AC 50/60 Hz, 25 kW at 415 V AC 50/60 Hz, 30 kW at 440 V AC 50/60 Hz, 30 kW at 500 V AC 50/60 Hz, 33 kW at 660...690 V AC 50/60 Hz - motor power hp: 15 hp at 200/208 V AC 60 Hz for 3P motors conforming to CSA, 15 hp at 200/208 V AC 60 Hz for 3P motors conforming to UL, 15 hp at 230/240 V AC 60 Hz for 3P motors conforming to CSA, 15 hp at 230/240 V AC 60 Hz for 3P motors conforming to UL, 3 hp at 115 V AC 60 Hz for 1P motors conforming to CSA, 3 hp at 115 V AC 60 Hz for 1P motors conforming to UL, 40 hp at 460/480 V AC 60 Hz for 3P motors conforming to CSA, 40 hp at 460/480 V AC 60 Hz for 3P motors conforming to UL, 40 hp at 575/600 V AC 60 Hz for 3P motors conforming to CSA, 40 hp at 575/600 V AC 60 Hz for 3P motors conforming to UL, 7.5 hp at 230/240 V AC 60 Hz for 1P motors conforming to CSA, 7.5 hp at 230/240 V AC 60 Hz for 1P motors conforming to UL - connections - terminals: control circuit : ring lugs - external diameter: 8 mm, control circuit : screw clamp terminal 1 cable 1...4 mm² - cable stiffness: flexible - with cable end, control circuit : screw clamp terminal 1 cable 1...4 mm² - cable stiffness: flexible - without cable end, control circuit : screw clamp terminal 1 cable 1...4 mm² - cable stiffness: solid - without cable end, control circuit : screw clamp terminal 2 cable 1...2.5 mm² - cable stiffness: flexible - with cable end, control circuit : screw clamp terminal 2 cable 1...4 mm² - cable stiffness: flexible - without cable end, control circuit : screw clamp terminal 2 cable 1...4 mm² - cable stiffness: solid - without cable end, control circuit : spring terminal 1 cable 0.75...2.5 mm² - cable stiffness: flexible - without cable end, control circuit : spring terminal 2 cable 0.75...2.5 mm² - cable stiffness: flexible - without cable end, power circuit : ring lugs - external diameter: 16.5 mm, power circuit : screw clamp terminal 1 cable 1...25 mm² - cable stiffness: flexible - with cable end, power circuit : screw clamp terminal 1 cable 1...25 mm² - cable stiffness: flexible - without cable end, power circuit : screw clamp terminal 1 cable 1...25 mm² - cable stiffness: solid - without cable end, power circuit : screw clamp terminal 1 cable 1...35 mm² - cable stiffness: flexible - with cable end, power circuit : screw clamp terminal 1 cable 1...35 mm² - cable stiffness: flexible - without cable end, power circuit : screw clamp terminal 1 cable 1...35 mm² - cable stiffness: solid - without cable end - quantity per set: set of 10.
