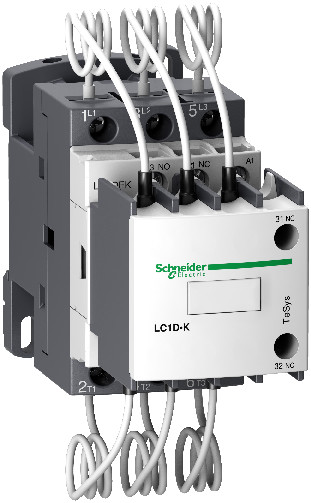

CONTACTOR LC1DFKP7 12,5kVAR 3s 1s2a 230V
Product code
3781632
TeSys LC1D*K contactors
The TeSys LC1D*K contactor is designed for switching one or multiple (up to 6 steps) capacitors for reactive power compensation. The contactor limits the switching surge caused by capacitance to a maximum of 60x In, using pre-charging auxiliary contacts and a resistor circuit. The current-limiting phase, active before the main contacts of the contactor close, extends the lifespan of the contactor's main contacts, overload protectors, and capacitors. This product description is an automated translation of the original Finnish description.
The TeSys LC1D*K contactor is designed for switching one or multiple (up to 6 steps) capacitors for reactive power compensation. The contactor limits the switching surge caused by capacitance to a maximum of 60x In, using pre-charging auxiliary contacts and a resistor circuit. The current-limiting phase, active before the main contacts of the contactor close, extends the lifespan of the contactor's main contacts, overload protectors, and capacitors. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Capacitor contactor (EC001079)
Rated control supply voltage AC 50 Hz230-230 V
Rated control supply voltage AC 60 Hz230-230 V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Operating voltage AC 50 Hz440-440 V
Operating voltage AC 60 Hz440-440 V
Rated reactive power at 400 V, 50 Hz12.5 kvar
Rated reactive power at 400 V, 60 Hz12.5 kvar
Number of auxiliary contacts as normally closed contact2
Number of auxiliary contacts as normally open contact1
Width45 mm
Height115 mm
Depth121 mm
Product codes
SAPCEX900
STK3781632
PLC3781632
GTIN/EAN3606480401794
Manufacturer part numberLC1DFKP7
Vendor material number3781632
Basic information
Package measurements (L x W x H)225 x 65 x 65 mm
Package volume0.951 l
Package weight0.552 kg
Base uniteach
Package units1 / 6 / 48
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
