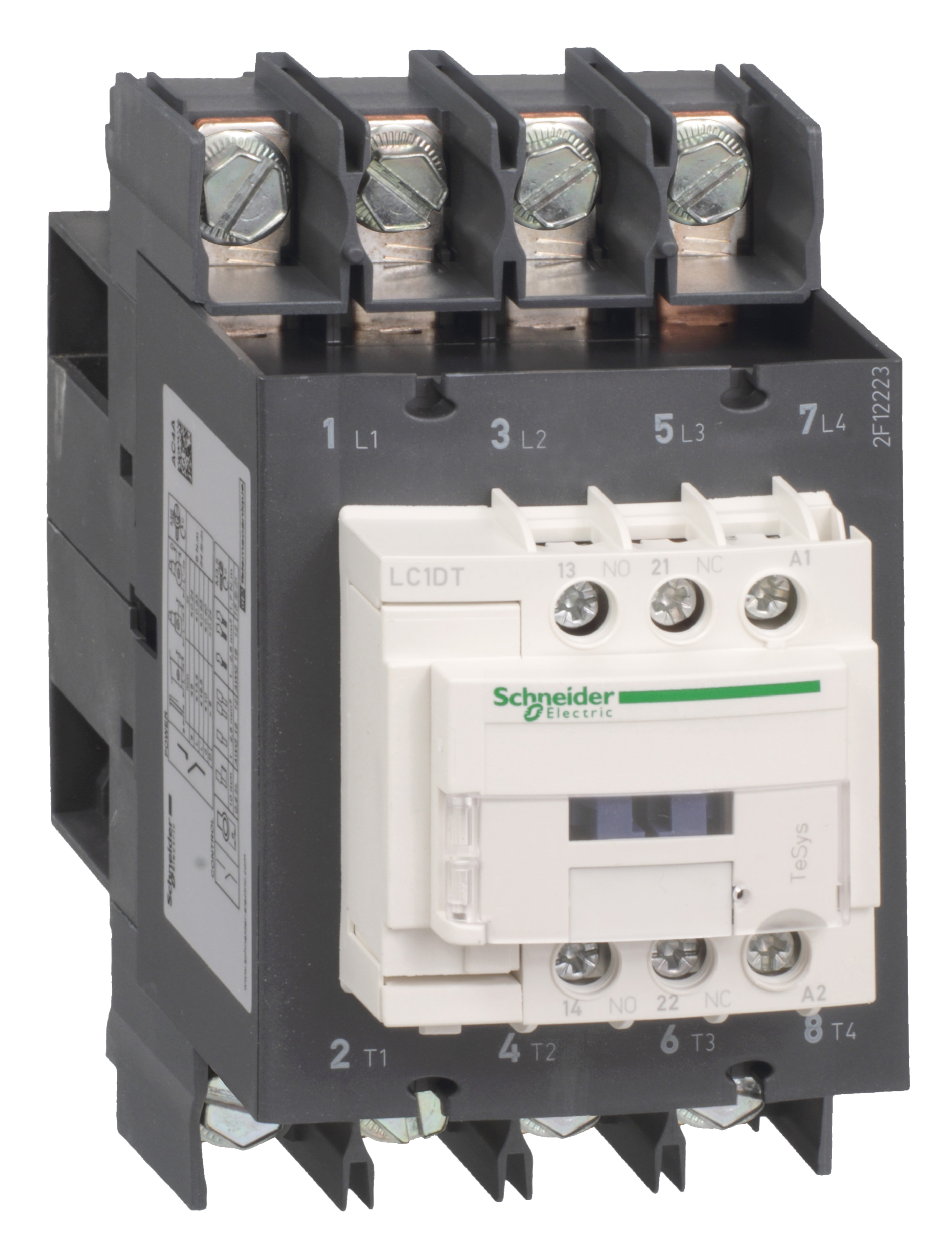

CONTACTOR LC1DT60ABD 60A AC1 24VDC
Product code
3760307
TeSys D contactor, 4p(4 NO), AC-1, <= 440 V 60A, 24 V DC standard coil
No product description available.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz0 - 0 V
Rated control supply voltage AC 60 Hz0 - 0 V
Rated control supply voltage DC24-24 V
Voltage type for actuatingDC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact4
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-1, 400 V60 A
Rated operation current Ie at AC-3, 400 V0 A
Rated operation power at AC-3, 400 V0 kW
Rated operation current Ie at AC-4, 400 V0 A
Rated operation power at AC-4, 400 V0 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Suitable for distribution boardno
Product codes
SAPAEW309
STK3760307
PLC3760307
GTIN/EAN3389119409353
Manufacturer part numberLC1DT60ABD
Vendor material numberLC1DT60ABD
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume1.668 l
Package weight1.09 kg
Base uniteach
Package units1 / 7
Package contents–
UNSPSC39121514
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
