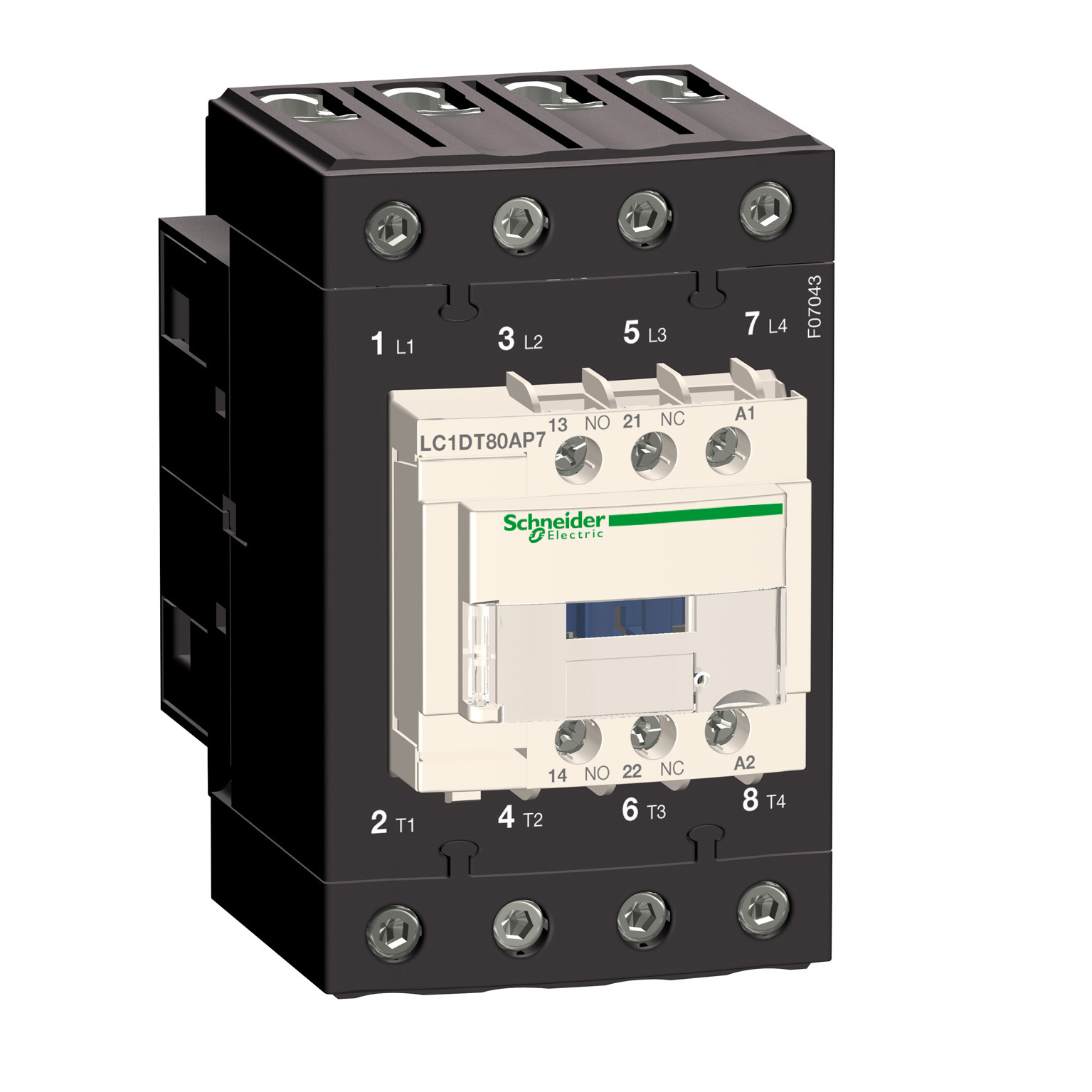

CONTACTOR LC1DT80AP7 80A AC1 230VAC
Product code
3760320
TeSys D contactor, 4p(4 NO), AC-1, <= 440 V 80A, 230 V AC 50/60 Hz coil
TeSys D Contactors and Reversing Contactors up to 75 kW/400 V/AC3 and 250 A/AC1
Efficiency for load control
In addition to a modern design, TeSys D contactors are fast and easy to install. The devices are compact (width 45 mm for < 38 A and 55 mm for 40 to 65 A) and comply with international standards. In the 40 to 65 A size range, contactors are equipped with a new patented EverLink technology that ensures long-lasting and maintenance-free operation (no need for re-tightening). Versatile NC/NO auxiliary contacts available in many models.
Unlimited application possibilities
Ideal for all applications. Motor control, reversing control, star/delta starting, resistive load control, lighting control, electric vehicle charger control, etc. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz230-230 V
Rated control supply voltage AC 60 Hz230-230 V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact4
Type of electrical connection of main circuitScrew connection
Operating voltage AC 50 Hz440-440 V
Operating voltage AC 60 Hz440-440 V
Rated operation current Ie at AC-1, 400 V80 A
Rated operation current Ie at AC-3, 400 V65 A
Rated operation power at AC-3, 400 V30 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Suitable for distribution boardno
Width70 mm
Product codes
SAPAEW322
STK3760320
PLC3760320
GTIN/EAN3389119409445
Manufacturer part numberLC1DT80AP7
Vendor material number3760320
Basic information
Package measurements (L x W x H)138 x 153 x 79 mm
Package volume1.668 l
Package weight1.09 kg
Base uniteach
Package units1 / 7
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
