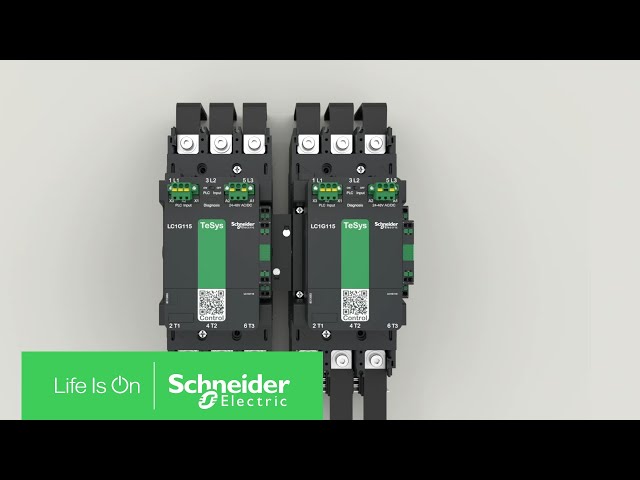

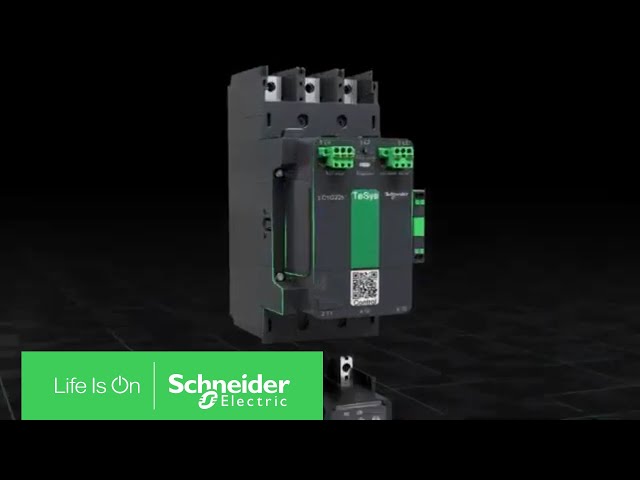

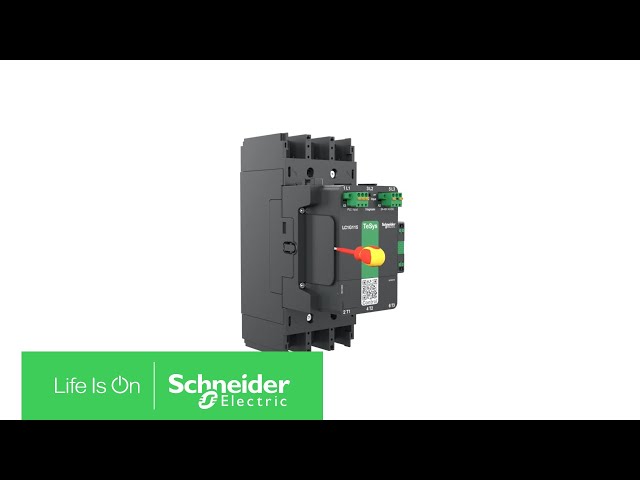

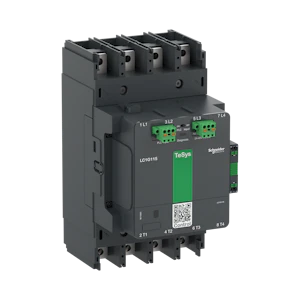

CONTACTOR TESYS 115 4P ADV 48-130V ACDC
Product code
3781840
TeSys Giga is a range of high-current contactors for 115 A - 800 A AC-3 (motor) applications and 250 A - 1050 A AC-1 (resistive) applications. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz48-130 V
Rated control supply voltage AC 60 Hz48-130 V
Rated control supply voltage DC48-130 V
Voltage type for actuatingAC/DC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact4
Type of electrical connection of main circuitBolt connection
Operating voltage AC 50 Hz1000-1000 V
Operating voltage AC 60 Hz1000-1000 V
Rated operation current Ie at AC-1, 400 V250 A
Rated operation power at AC-3, 400 V55 kW
Rated operation current Ie at AC-4, 400 V115 A
Rated operation power at AC-4, 400 V55 kW
Rated operation power NEMA75 kW
Number of auxiliary contacts as normally open contact1
Product codes
SAPCSA828
STK3781840
PLC3781840
GTIN/EAN3606481922625
Manufacturer part numberLC1G1154EHEA
Vendor material number3781840
Basic information
Package measurements (L x W x H)385 x 265 x 250 mm
Package volume25.506 l
Package weight6.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)703.9035
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
