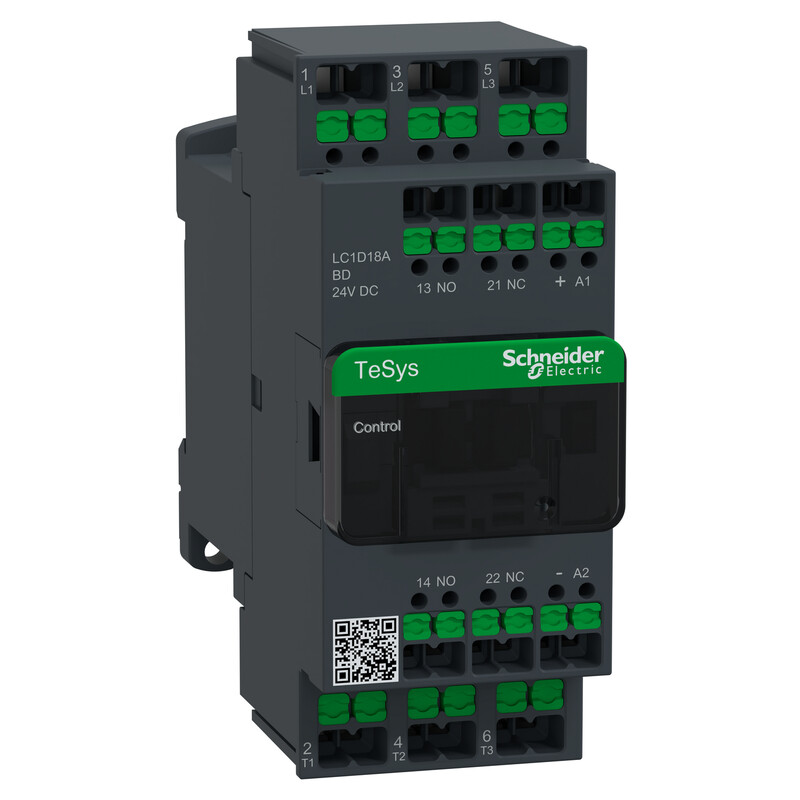

CONTACTOR TESYS 18A 3P 24V DC SNAP-IN
Product code
3783339
No product description available.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage DC24 - 24 V
Voltage type for actuatingDC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitOther
Rated operation current Ie at AC-1, 400 V32 A
Rated operation current Ie at AC-3, 400 V18 A
Rated operation power at AC-3, 400 V7.5 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Suitable for distribution boardno
Width45 mm
Height110 mm
Depth101 mm
Product codes
SAPDNV756
STK3783339
PLC3783339
GTIN/EAN3606487539421
Manufacturer part numberLC1D18ABD
Vendor material number3783339
Basic information
Package measurements (L x W x H)115 x 105 x 50 mm
Package volume0.604 l
Package weight0.644 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
Documents (3)
Brochures & documents
Links
Environment and safety
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
