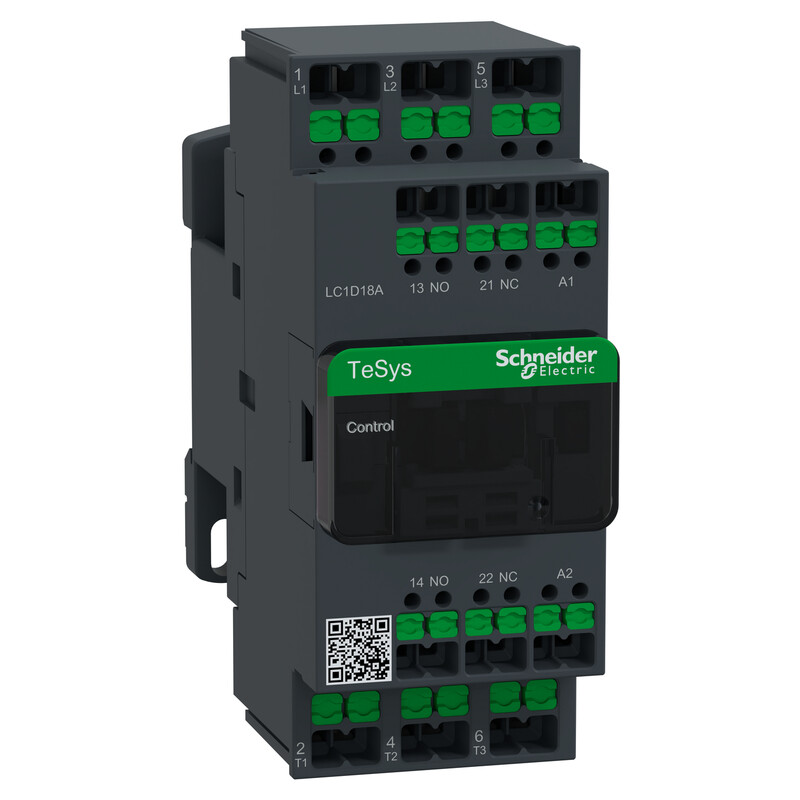

CONTACTOR TESYS 18A 3P 42V AC SNAP-IN
Product code
3783344
No product description available.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz42 - 42 V
Rated control supply voltage AC 60 Hz42 - 42 V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitOther
Operating voltage AC 50 Hz440 - 440 V
Operating voltage AC 60 Hz440 - 440 V
Rated operation current Ie at AC-1, 400 V32 A
Rated operation current Ie at AC-3, 400 V18 A
Rated operation power at AC-3, 400 V7.5 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Suitable for distribution boardno
Width45 mm
Product codes
SAPDNV701
STK3783344
PLC3783344
GTIN/EAN3606487539476
Manufacturer part numberLC1D18AD7
Vendor material number3783344
Basic information
Package measurements (L x W x H)114 x 100 x 57 mm
Package volume0.65 l
Package weight0.47 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
Documents (3)
Brochures & documents
Links
Environment and safety
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
