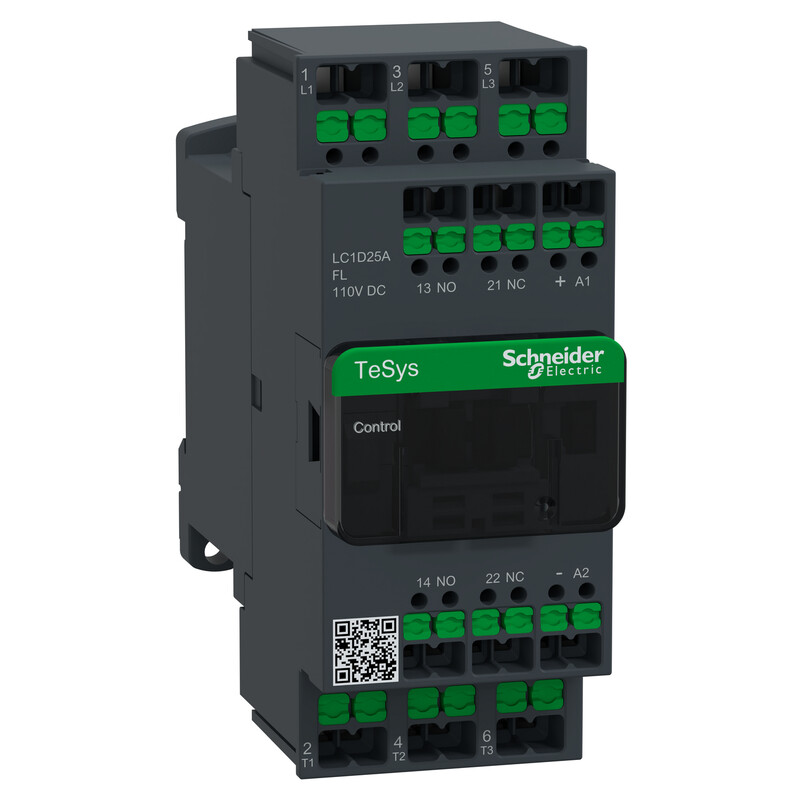

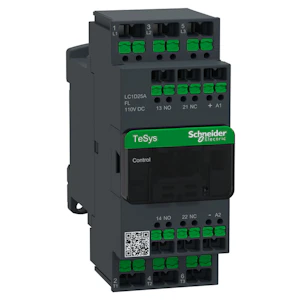

CONTACTOR TESYS 25A 3P 110V DC SNAP-IN
Product code
3783398
No product description available.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage DC110 - 110 V
Voltage type for actuatingDC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitOther
Rated operation current Ie at AC-1, 400 V40 A
Rated operation current Ie at AC-3, 400 V25 A
Rated operation power at AC-3, 400 V11 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Suitable for distribution boardno
Width45 mm
Height85 mm
Depth101 mm
Product codes
SAPDNV805
STK3783398
PLC3783398
GTIN/EAN3606487540038
Manufacturer part numberLC1D25AFL
Vendor material number3783398
Basic information
Package measurements (L x W x H)115 x 105 x 50 mm
Package volume0.604 l
Package weight0.644 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
