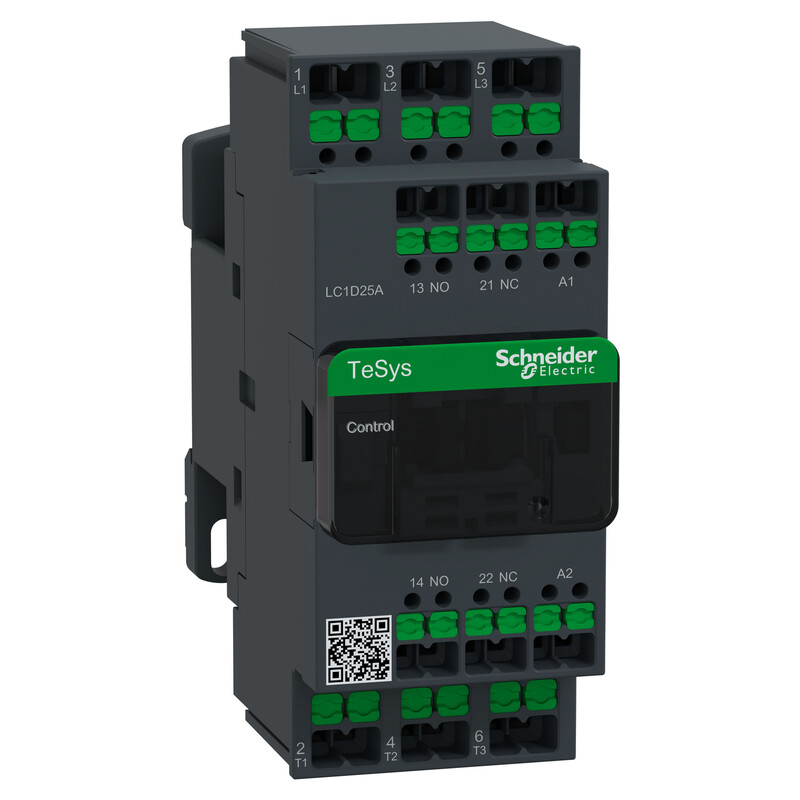

CONTACTOR TESYS 25A 3P 415V AC SNAP-IN
Product code
3783412
No product description available.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz415 - 415 V
Rated control supply voltage AC 60 Hz415 - 415 V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitOther
Operating voltage AC 50 Hz440 - 440 V
Operating voltage AC 60 Hz440 - 440 V
Rated operation current Ie at AC-1, 400 V40 A
Rated operation current Ie at AC-3, 400 V25 A
Rated operation power at AC-3, 400 V11 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Suitable for distribution boardno
Width45 mm
Product codes
SAPDNV816
STK3783412
PLC3783412
GTIN/EAN3606487540175
Manufacturer part numberLC1D25AN7
Vendor material number3783412
Basic information
Package measurements (L x W x H)115 x 105 x 50 mm
Package volume0.604 l
Package weight0.474 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
