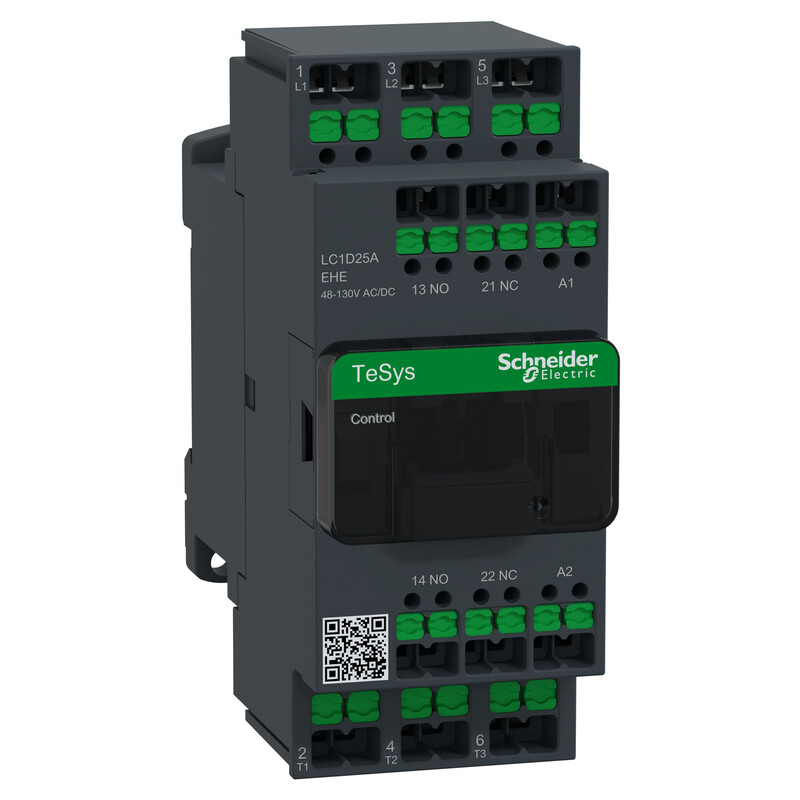

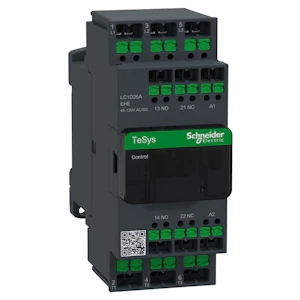

CONTACTOR TESYS 25A 3P 48-130V AC/DC SNAP-IN
Product code
3783392
No product description available.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz48 - 130 V
Rated control supply voltage AC 60 Hz48 - 130 V
Rated control supply voltage DC48 - 130 V
Voltage type for actuatingAC/DC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitOther
Operating voltage AC 50 Hz440 - 440 V
Operating voltage AC 60 Hz440 - 440 V
Rated operation current Ie at AC-1, 400 V40 A
Rated operation current Ie at AC-3, 400 V25 A
Rated operation power at AC-3, 400 V11 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Suitable for distribution boardno
Product codes
SAPDNV552
STK3783392
PLC3783392
GTIN/EAN3606487539971
Manufacturer part numberLC1D25AEHE
Vendor material number3783392
Basic information
Package measurements (L x W x H)114 x 99 x 57 mm
Package volume0.643 l
Package weight0.512 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
