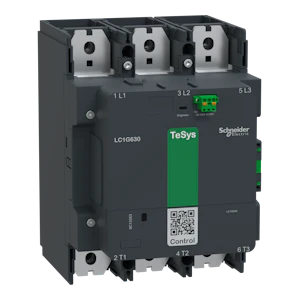

CONTACTOR TESYS 630 3P STD 48-130V ACDC
Product code
3781868
TeSys Giga is a range of high-current contactors for 115 A - 800 A AC-3 (motor) applications and 250 A - 1050 A AC-1 (resistive) applications. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz48 - 130 V
Rated control supply voltage AC 60 Hz48 - 130 V
Rated control supply voltage DC48 - 130 V
Voltage type for actuatingAC/DC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitBolt connection
Operating voltage AC 50 Hz1000 - 1000 V
Operating voltage AC 60 Hz1000 - 1000 V
Rated operation current Ie at AC-1, 400 V1050 A
Rated operation current Ie at AC-3, 400 V630 A
Rated operation power at AC-3, 400 V335 kW
Rated operation current Ie at AC-4, 400 V540 A
Rated operation power at AC-4, 400 V315 kW
Rated operation power NEMA500 kW
Product codes
SAPCSA840
STK3781868
PLC3781868
GTIN/EAN3606481921901
Manufacturer part numberLC1G630EHEN
Vendor material number3781868
Basic information
Package measurements (L x W x H)505 x 345 x 300 mm
Package volume52.268 l
Package weight16.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1803.7528
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
