COUPLING CABLE COMPACT NSX BSCM MODBUS SL CORD 3m
Product code
3606106

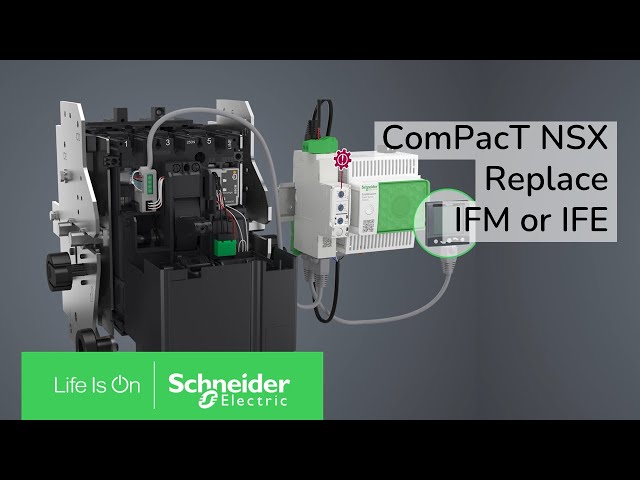

The Modbus SL cable is used to connect the BSCM Modbus SL/ULP module installed inside the ComPacT NSX breaker to a Modbus master. One end of the cable has an RJ45 connector to be connected to the Modbus master, and the other end has a connector for the BSCM Modbus SL/ULP module's Modbus interface. The cable contains twisted pair wires for 24 V DC power supply and Modbus signals. The Modbus SL cable is available in lengths of 0.35 m, 1.3 m, or 3 m. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Patch cord copper (twisted pair) (EC001262)
Cable typeOther
CategoryOther
Length3 m
Type of connector connection 1RJ45 8(4)
Type of connector connection 2Other
Colour outer sheathBlack
Anti-kink sleeveNone
Locking leverno
Fire retardant versionno
Halogen free according to EN IEC 60754-1yes
Halogen free according to EN IEC 60754-2yes
Halogen free according to EN IEC 60754-3yes
Oil resistant according to EN IEC 60811-404no
Cable construction1x4
AWG-size26
Product codes
SAPDFO493
STK3606106
PLC3606106
GTIN/EAN3606487034889
Manufacturer part numberLV434223
Vendor material numberLV434223
Basic information
Package measurements (L x W x H)90 x 90 x 45 mm
Package volume0.36 l
Package weight0.1 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121616
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
