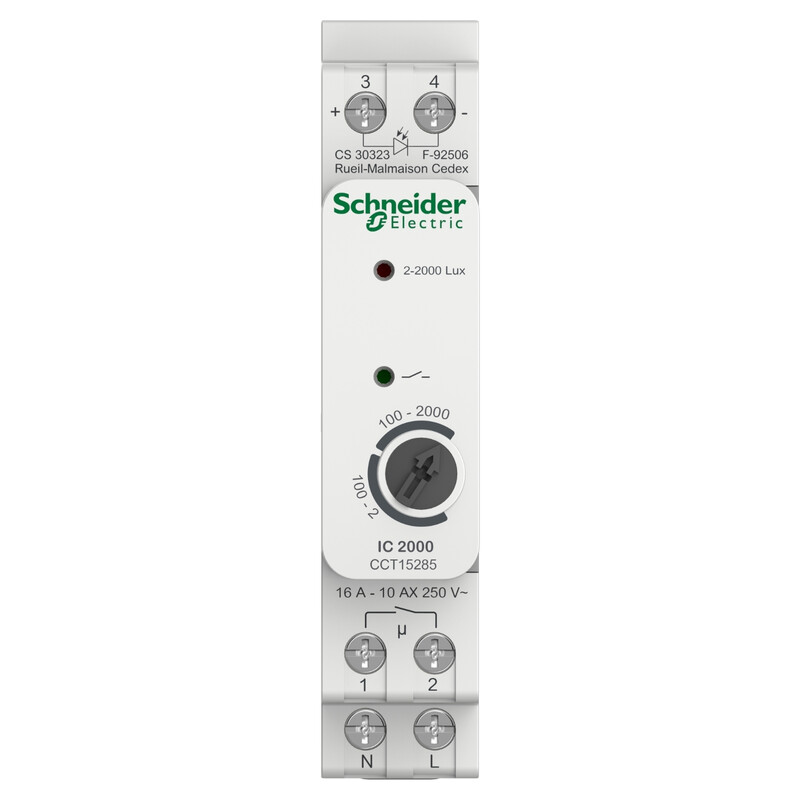

DIGITAL TIMER ACTI 9 IC2000 INDOOR (2 - 2000 LX)

Name: DIGITAL TIMER ACTI 9 IC2000 INDOOR (2 - 2000 LX)
Brand: SCHNEIDER ELECTRIC
SKU: CLZ543

Product code

2609918

Acti 9 Digital timer IC2000 indoor (2 - 2,000 lx) This product description is an automated translation of the original Finnish description.

Product details

Product class (ETIM)Twilight switch for distribution board (EC001645)

Rated voltage230 V

Rated frequency50 - 60 Hz

Max. incandescent lamp load2600 W

Max. load fluorescent lamp2300 VA

Max. load fluorescent lamp (Duo circuit)2300 VA

Max. load fluorescent lamp (parallel compensated)730 VA

Max. switching current (cos phi = 0.6)10 A

Rated switch current16 A

Adjustment range brightness value2 - 2000 lx

With programmable overnight shutoffno

Push button inputno

Max. conductor length light sensor50 m

Protection class light sensorII

Mounting method light sensorBuilt-in

Mounting methodDIN rail

SAPCLZ543

STK2609918

PLC2609918

GTIN/EAN3606489524609

Manufacturer part numberCCT15285

Vendor material number2609918

Package measurements (L x W x H)105 x 77 x 47 mm

Package volume0.38 l

Package weight0.126 kg

Base uniteach

Package units1 / 60 / 1440

Package contents–

UNSPSC39122208

BrandSCHNEIDER ELECTRIC

VendorSCHNEIDER ELECTRIC ASENNUSKALUST
