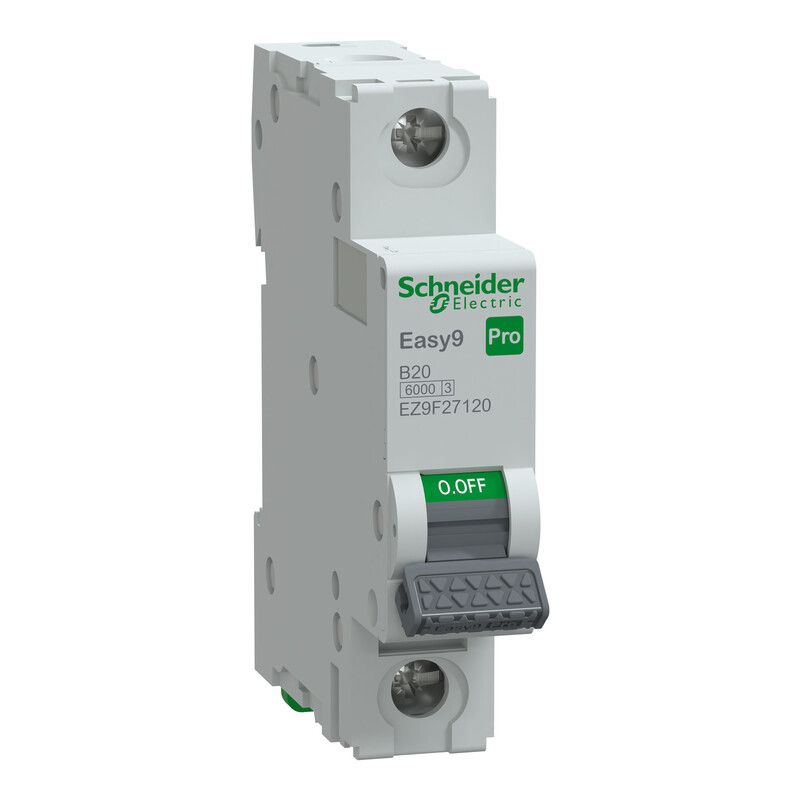

MINIATURE CIRCUIT BREAKEREASY9 EASY9 MCB 1B20 6KA

The Easy9 series circuit breakers feature color-coded indicators that show the device status at a glance. The rapid closing of the device ensures good contact, enhances safety, and extends service life. The design of the terminals guides cables to their correct positions, and their serrations improve resistance to withdrawal. The finger grip provides better handling for the user.

Available with B and C characteristic curves. The B curve is suitable for loads without high switching currents, such as heating and lighting loads. The C curve allows for higher temporary switching currents, such as motors and larger lighting groups.

Features

• Rated current 6–20 A
• Rated voltage 240/415 V AC
• Breaking capacity 6 kA (IEC/EN 60898-1)
• Insulation voltage Ui 500 V
• Impulse withstand voltage Uimp 4 kV
• Energy limitation class 3
• Operating temperature -30 to +70 °C
• Ability to connect up to three auxiliary contacts (OF/SD) (3254541 / 3254542)
• Busbar compatibility: top pin, bottom pin/fork

This product description is an automated translation of the original Finnish description.
