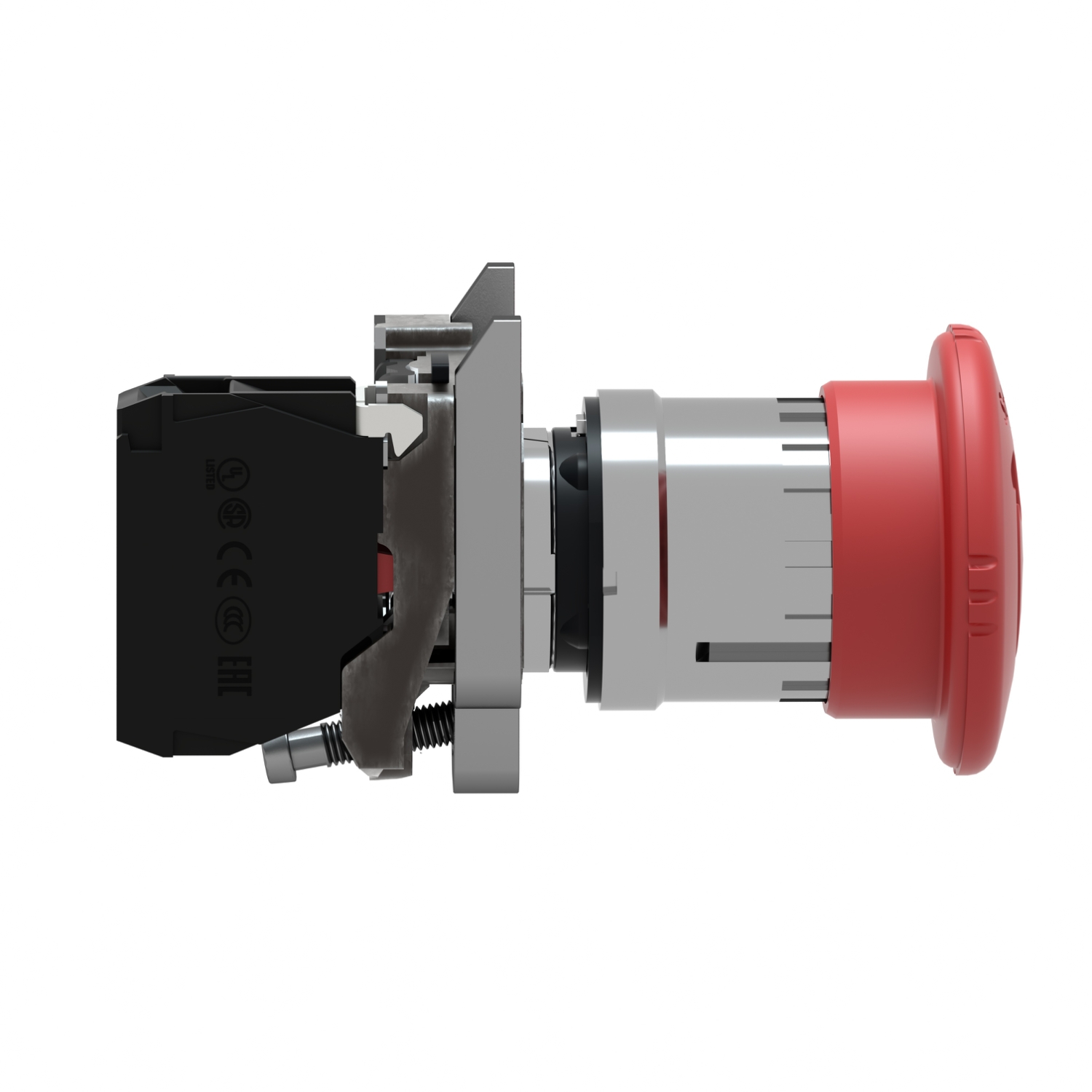

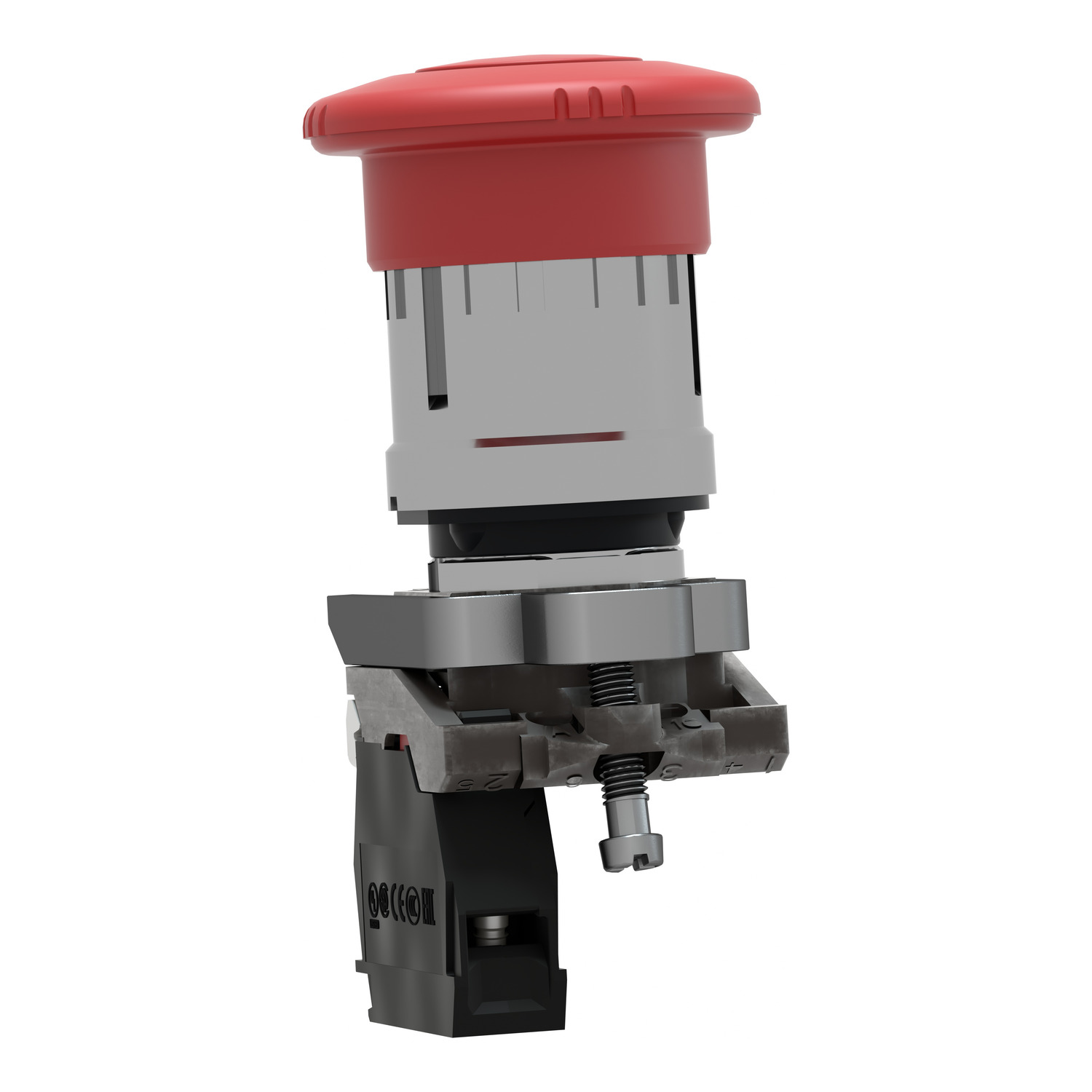

EMERGENCY STOP PUSH-BUTTON XB4BS8442
Product code
2318554
Red Ø40 Emergency stop, switching off Ø22 latching turn release 1NC
Emergency stop button assembly consisting of a button cap, housing, and contacts.
Buttons are available with spring return or latching base models.
Button release methods include: rotary release, key release, or pull release. Button cap sizes are Ø20-60 mm. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Emergency stop complete (EC002034)
Unlocking methodTurn-release
Number of contacts as normally closed contact1
Number of contacts as normally open contact0
Degree of protection (IP)IP66
Degree of protection (NEMA)Other
Mounting methodBuilt-in
With lightingno
Hole diameter22.5 mm
Connection type auxiliary circuitScrew connection
Diameter cap40 mm
Product codes
SAPCCX816
STK2318554
PLC2318554
GTIN/EAN3606480625053
Manufacturer part numberXB4BS8442
Vendor material number2318554
Basic information
Package measurements (L x W x H)54 x 88 x 45 mm
Package volume0.214 l
Package weight0.124 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121522
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
Documents (9)
Environment and safety
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
