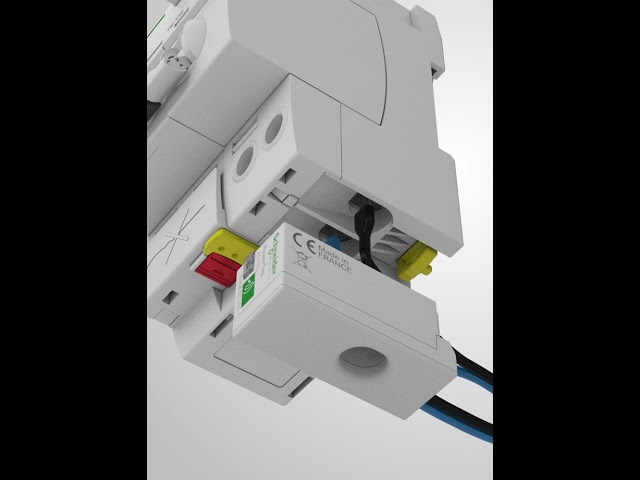

ENERGY METER ACTI 9 ACTI9 POWERTAG 1P+N FLEX

PowerTag is a wireless energy and power measurement sensor for 1P, 1P+N, 3P, and 3P+N power distribution. They are directly connected to Acti 9 module components. All models are compatible with tunnel connector components (IK60N, IC60L, and iIDK). Flex models are compatible with all connector types thanks to the flexible connection cable. PowerTag sensors connect wirelessly at 2.4 GHz to either the Smartlink SI B rail or the Smartlink SI D hub. Technical specifications: Maximum current: 63A PowerTag measures the following electrical quantities according to standard IEC 61557-12: Active energy (accuracy class 1) RMS values: Voltages between phases and neutral Currents per phase Active power Power factor Configuration: The built-in LED indicator shows the device configuration status. Connectivity to Smartlink system: To Smartlink SI B rail (measurement, monitoring, and control applications) To Smartlink SI D hub (measurement and monitoring applications) Connects to the Smartlink devices web server Load monitoring: Information on voltage loss Load alerts This product description is an automated translation of the original Finnish description.
