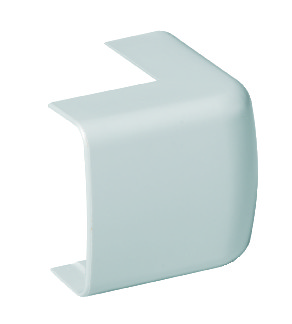

EXTERNAL CORNER OPTILINE OL MINI 18X45 HF PV

OptiLine Mini Channels

OptiLine Mini is a stylishly designed channel system.

The wide range includes six channel sizes and a variety of accessories in different materials and colors.

One-, two-, and three-part channels can be connected using a branching piece.

PVC and PC/ABS channels are approved for use with simple insulated cables when non-metallic fasteners are used.

Both the cover and the channel base are U-shaped, maintaining their shape during handling. The base profile comes pre-drilled for mounting screws.

Sizes 12 x 20 and 18 x 20 are available with a strong adhesive strip, also featuring holes for mounting screws.

OptiLine Mini enhances safety because the cover cannot be removed without tools.

Enclosure rating: IP40

Accessories

All necessary accessories for professional installation are available, such as inner corners, outer corners, branching pieces, end caps, etc.

Delivery Lengths

The channel base and cover are delivered together. Length: 2100 mm.

Materials and Colors

• Channel base and cover:
• Aluminum (white RAL 9003 or RAL 9010)
• Lead- and cadmium-free PVC (white RAL 9003 or RAL 9010, black RAL 9005)
• Halogen-free PC/ABS (white RAL 9003 or RAL 9010)
• Accessories:
• Halogen-free PC/ABS plastic
• Compatibility with other system ranges:
• RAL 9003 matches Exxact, ELKO One, and ELKO RS white
• RAL 9005 matches ELKO One and ELKO RS black
• RAL 9010 matches ELKO Plus and Renova white

This product description is an automated translation of the original Finnish description.
