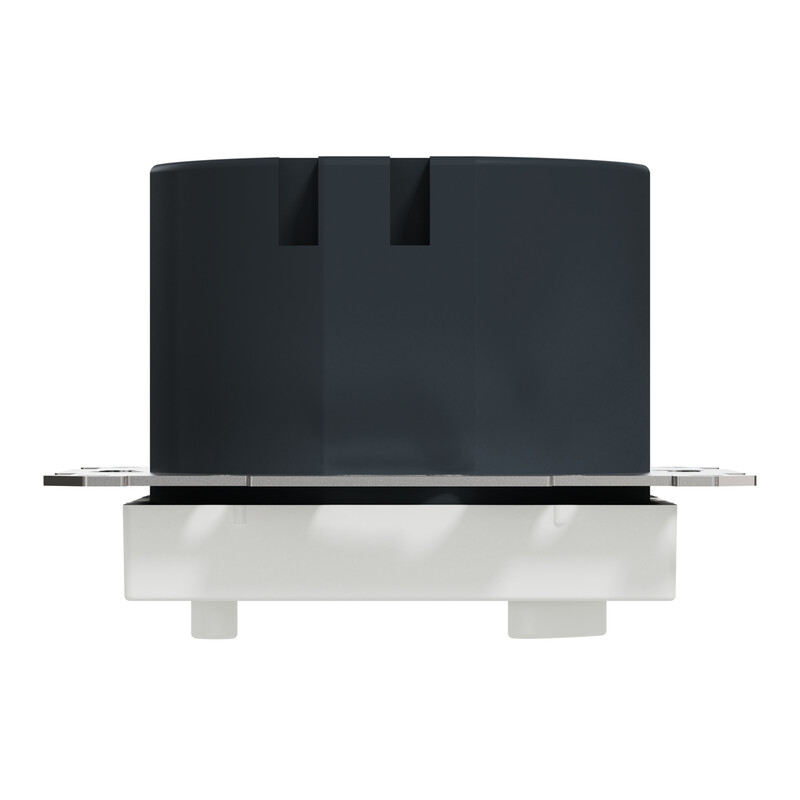

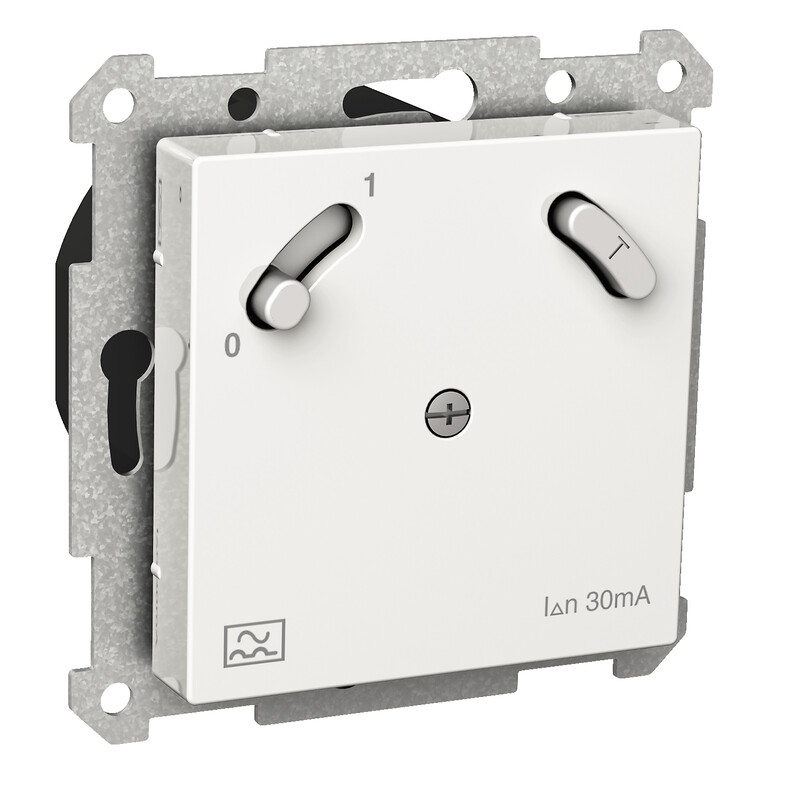

EXXACT RESIDUAL CURRENT DEVICE RCD 30MA WHITE
Product code
3227004
Exxact RCD white
Features
- residual current device 16 A
- IP20
- for flush-mounted box c/c 60 mm or surface-mounted box 35 mm deep
- with ON/OFF switch and test button
- type A version, 30 mA
Product details
Technical specifications
Product class (ETIM)Residual current monitoring relay (EC001445)
Type of electric connectionSpring clamp connection
With detachable clampsno
FunctionFor AC-current system
External power supply requiredyes
Voltage type (supply voltage)AC
Supply voltage AC 50 Hz230-230 V
Current measuring range30-30 mA
Response value amperage 130-30 mA
Min. adjustable delay-on energization time0 s
Max. permitted delay-on energization time0 s
Indication of difference currentno
Error registration possibleno
Number of contacts as normally closed contact0
Number of contacts as normally open contact0
Number of contacts as change-over contact0
Product codes
SAPALN294
STK3227004
PLC3227004
GTIN/EAN3606480207877
Manufacturer part numberWDE002789
Vendor material numberWDE002789
Basic information
Package measurements (L x W x H)95 x 95 x 80 mm
Package volume0.198 l
Package weight0.165 kg
Base uniteach
Package units1 / 10 / 1200 / 1920
Package contents–
UNSPSC39122205
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC ASENNUSKALUST
