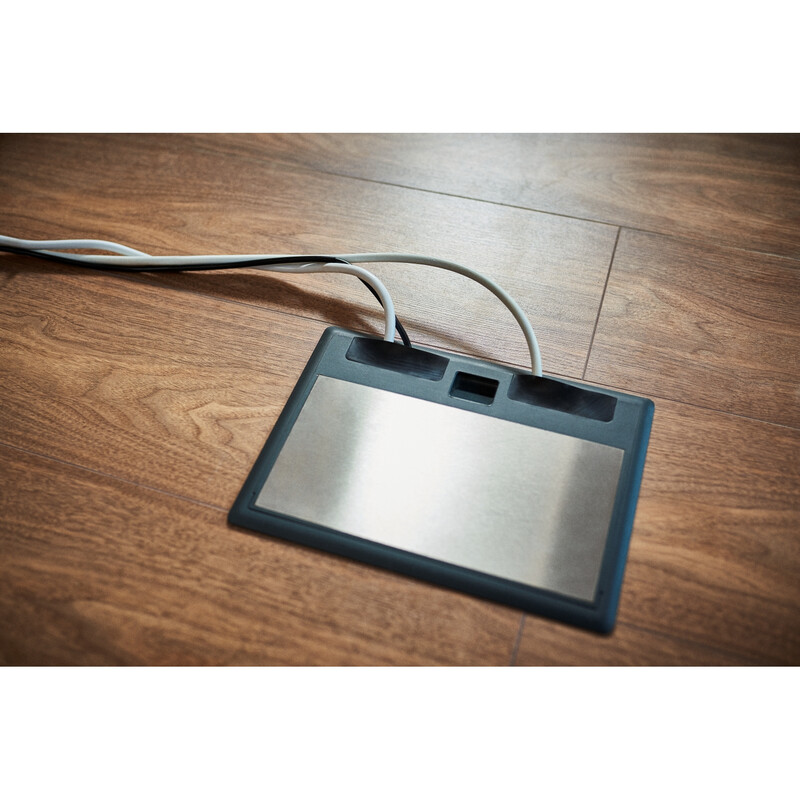

FLOOR BOX UNICA SYSTEM+ L PLASTIC IP20 6MOD
Product code
1458334
Plastic floor box manufactured by Schneider Electric, part of the Unica System+ product line. The line is specifically designed for offices and public spaces requiring modular and adaptable electrical installations.
Features
- Enclosure rating IP20
- 6 modules
Product details
Technical specifications
Product class (ETIM)Device box for subfloor installation (EC000893)
Nominal dimension200 mm
Min. height finishing layer70 mm
Levelling range70-109 mm
Suitable for subfloor duct countersunk (closed)yes
Suitable for subfloor duct overhead closedno
Duct height28-38 mm
Duct width150-150 mm
Built-in opening for floor columnno
Built-in opening for built-in unitRectangular
Number of appliances to build in6
Material side wallPlastic
Suitable for placing of sealingno
Decoupling possibility cover from base unityes
Bottom plateno
Degree of protection (IP)IP24
Product codes
SAPCMI626
STK1458334
PLC1458334
GTIN/EAN3606489818968
Manufacturer part numberINS52122
Vendor material number1458334
Basic information
Package measurements (L x W x H)310 x 212 x 90 mm
Package volume5.915 l
Package weight1.638 kg
Base uniteach
Package units1 / 7 / 84
Package contents–
UNSPSC39121307
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC LEXEL
