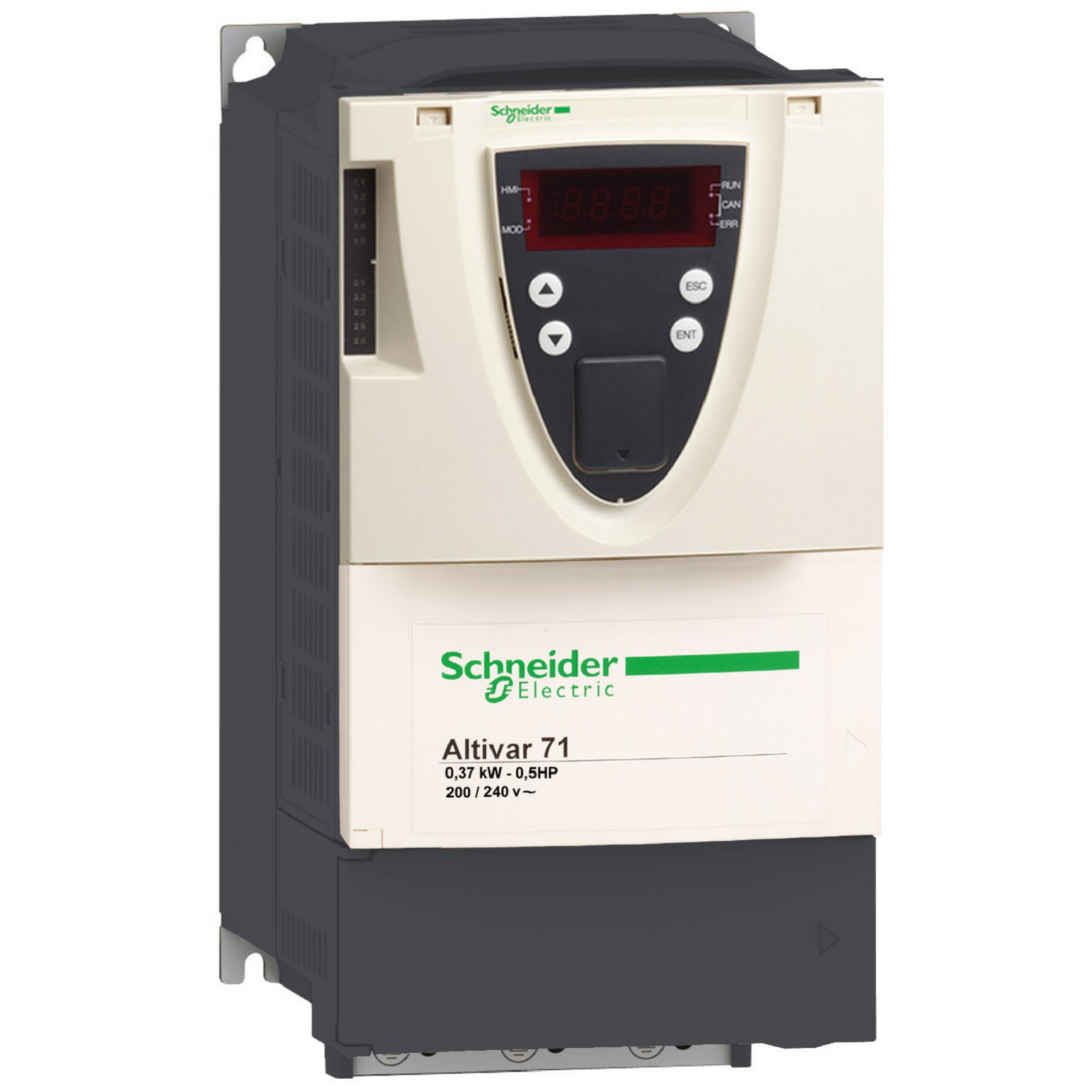

FREQUENCY CONVERTER IP20 ATV71H075M3Z/0,75KW 240V

Variable speed drive ATV71, 0,75kW-1HP, 240V, EMC filter-w/o graphic terminal. range of product: Altivar 71 - product or component type: variable speed drive - component name: ATV71 - motor power kW: 0.37 kW at 200...240 V single phase, 0.75 kW at 200...240 V 3 phases - motor power hp: 0.5 hp at 200...240 V single phase, 1 hp at 200...240 V 3 phases - network number of phases: 3 phases, single phase - line current: 5.3 A for 240 V 3 phases 0.75 kW / 1 hp, 5.8 A for 240 V single phase 0.37 kW / 0.5 hp, 6.1 A for 200 V 3 phases 0.75 kW / 1 hp, 6.9 A for 200 V single phase 0.37 kW / 0.5 hp - EMC filter: integrated - assembly style: with heat sink - variant: without remote graphic terminal - apparent power: 1.4 kVA at 240 V single phase 0.37 kW / 0.5 hp, 2.2 kVA at 240 V 3 phases 0.75 kW / 1 hp - prospective line Isc: <= 5 kA, 3 phases, <= 5 kA, single phase - nominal output current: 3 A at 4 kHz 230 V single phase 0.37 kW / 0.5 hp, 4.8 A at 4 kHz 230 V 3 phases 0.75 kW / 1 hp - maximum transient current: 4.5 A for 60 s single phase 0.37 kW / 0.5 hp, 4.9 A for 2 s single phase 0.37 kW / 0.5 hp, 7.2 A for 60 s 3 phases 0.75 kW / 1 hp, 7.9 A for 2 s 3 phases 0.75 kW / 1 hp - output frequency: 0.1...599 kHz - nominal switching frequency: 4 kHz - switching frequency: 1...16 kHz adjustable, 4...16 kHz with derating factor - asynchronous motor control profile: ENA (Energy adaptation) system for unbalanced loads, flux vector control (FVC) with sensor (current vector), sensorless flux vector control (SFVC) (voltage or current vector), voltage/frequency ratio (2 or 5 points). Benefits: Make way for evolution!. Unique range up to 630 kW, exceptional performance, advanced functions. Open to all communication networks, applications, users. Altivar 71 provides ingenious solutions for all your particular requirements.... Applications: High performance applications (constant torque):, Material handling, Hoisting, Wood machines, Process machines, Textile machines, Packaging..
