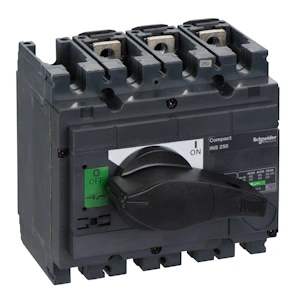

INTERPACT INS250 3P 31106
Product code
3653688
Compact INS/INV contactors are suitable for all low-voltage applications requiring reliable and safe isolation, disconnection, and switching functions. Application examples: supply switching, rising centers, group centers, automation centers, and emergency stop. A comprehensive and unified product range offers numerous accessories such as auxiliary contacts, touch guards, and door handles. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage690-690 V
Rated permanent current Iu250 A
Rated permanent current at AC-23, 400 V250 A
Rated permanent current at AC-21, 400 V250 A
Rated short-time withstand current lcw8.5 kA
Rated operation power at AC-23, 400 V132 kW
Conditioned rated short-circuit current Iq36 kA
Number of poles3
Product codes
SAPGCY251
STK3653688
PLC3653688
GTIN/EAN3303430311065
Manufacturer part number31106
Vendor material number3653688
Basic information
Package measurements (L x W x H)174 x 162 x 138 mm
Package volume3.89 l
Package weight2.216 kg
Base uniteach
Package units1 / 9 / 36
Package contents1
UNSPSC39121601
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
