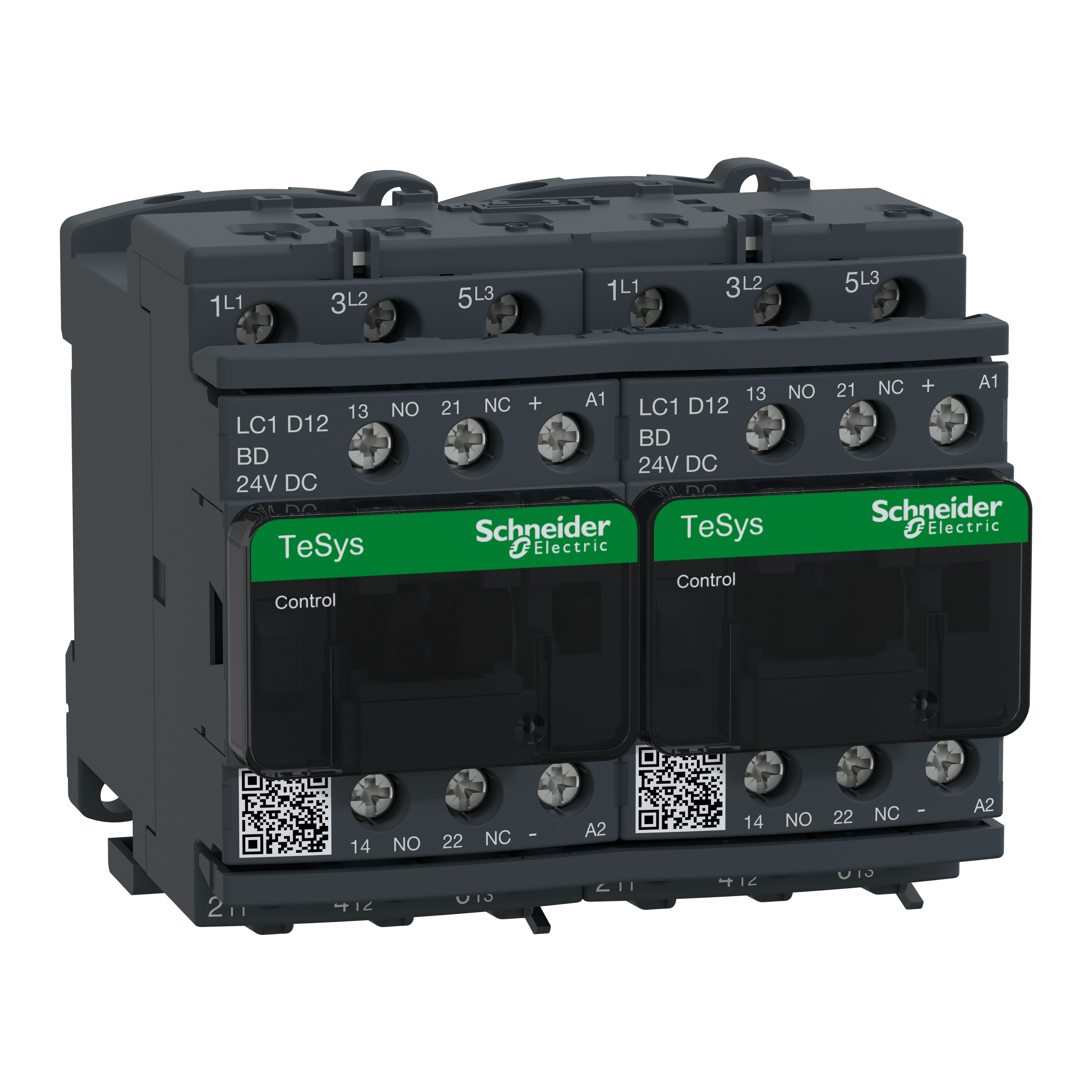

CONTACTOR LC2D12BDV
Product code
3782268
No product description available.
Product details
Technical specifications
Product class (ETIM)Combination of contactors (EC000010)
FunctionReversing contactor
Rated control supply voltage DC24-24 V
Voltage type for actuatingDC
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-3, 400 V12 A
Rated operation power at AC-3, 400 V5.5 kW
Rated operation power NEMA5.59 kW
Degree of protection (IP)IP20
Degree of protection (NEMA)Other
Product codes
SAPACH772
STK3782268
PLC3782268
GTIN/EAN3389110413670
Manufacturer part numberLC2D12BDV
Vendor material numberLC2D12BDV
Basic information
Package measurements (L x W x H)113 x 93 x 138 mm
Package volume1.45 l
Package weight1.146 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39121529
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
