LOAD MANAGEMENT DEVICE EVLINK SCHNEIDER CHARGE PEAK CONTROL

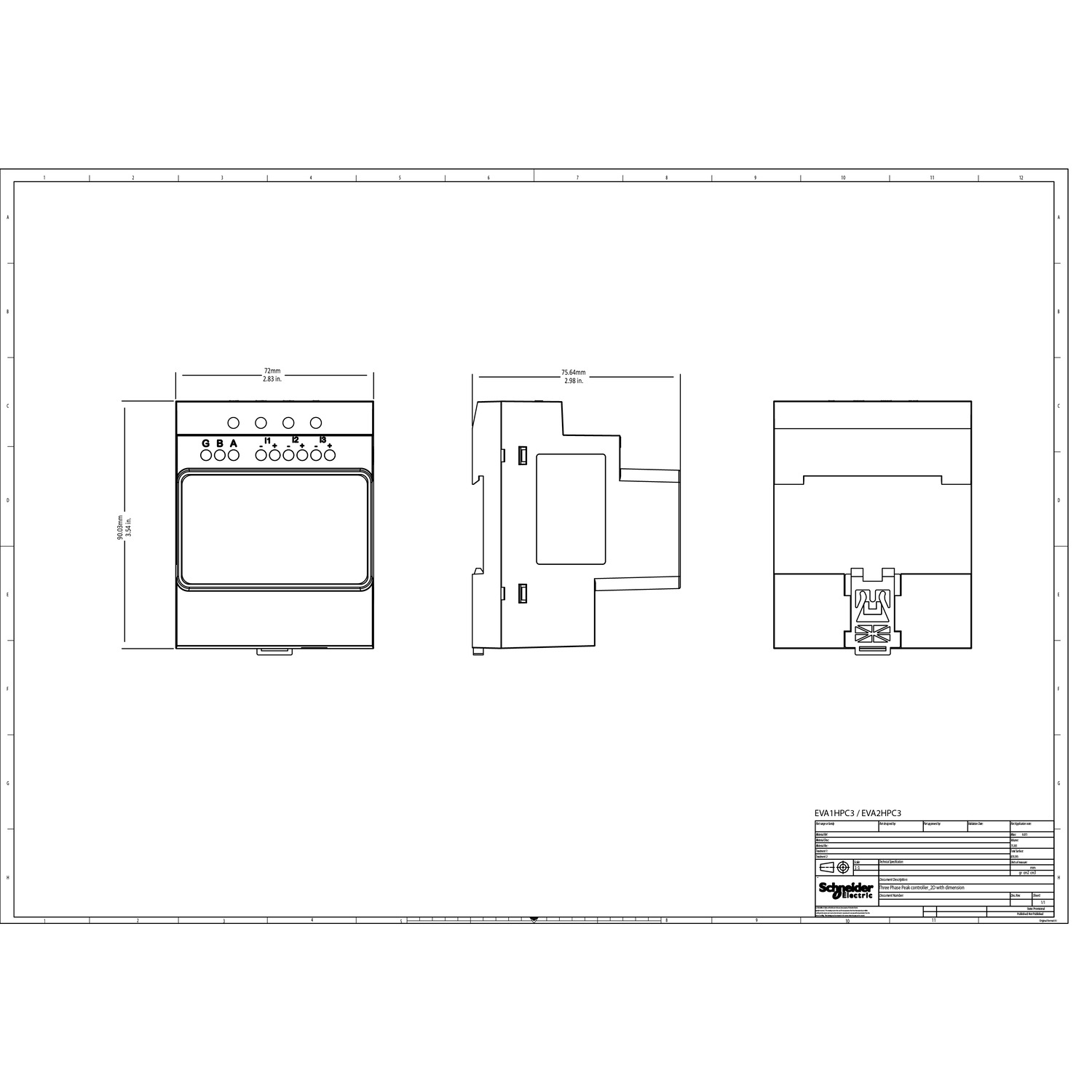

Schneider Charge load management - Peak Control, used to prevent potential overload conditions in a building caused by the charging station. It is designed for use in a three-phase electrical network. It operates at a voltage of 220 VAC to 230 VAC with a tolerance of +/- 10% and a frequency of 50 Hz or 60 Hz. It enables real-time adjustment of the maximum power delivered by the charging station to the electric vehicle based on the building's other loads. This adjustment is automatically applied up to 50 A. It must be mounted on a 35 mm DIN rail in the electrical panel. It communicates with the charging station using a Power Line Communication system, where the PLC system transmits data along the supply cable to the charging station. The communication status of the charging station is indicated by an LED, with red indicating an error and green indicating proper communication. Another LED glows green when the charging station is connected to the electric vehicle during charging. Dimensions: (L) 72 mm x (W) 89 mm x (H) 75 mm. Product weight is 180 g. Color is white. Made of plastic. Operating temperature: -30 °C to 50 °C. Storage temperature: -40 °C to 85 °C. Complies with standards EN 61010-1 (published 2010) and EN 61326-1 (published 2013). This product description is an automated translation of the original Finnish description.
