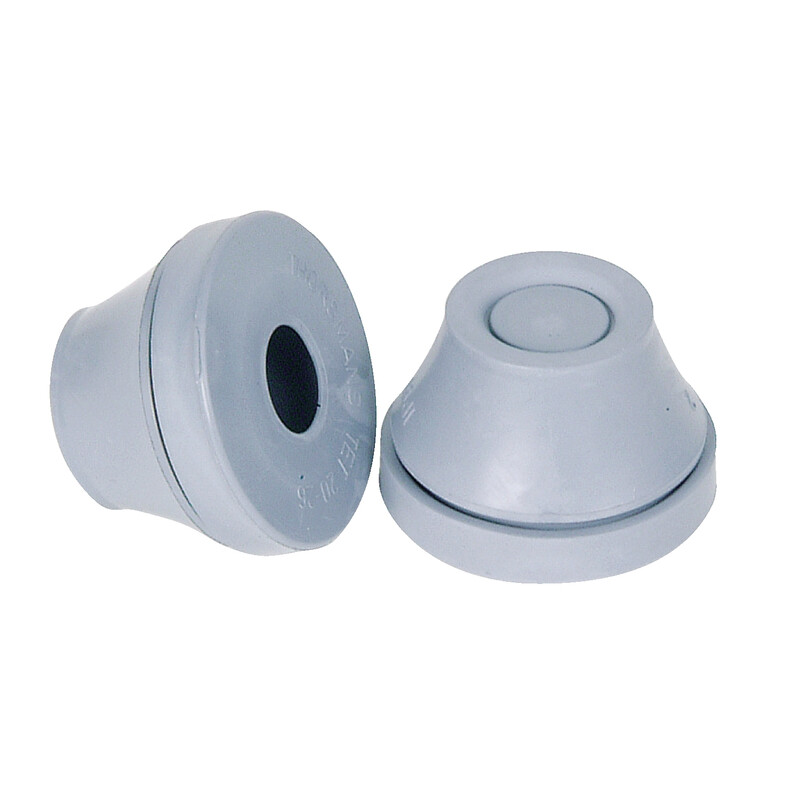

MEMBRANE SEAL TET 10-14
Product code
1730714
Thorsman TET 10-14, grommet, grey, diameter 10 to 14
IP 67, for non-threaded holes with plate thicknesses of 1...4 mm.
TET=gray EPDM. TET-C=oil-resistant, black CR.
Rubber membrane seals that both clamp and seal, protection class IP67.
Used in non-threaded holes with diameters of 0.5-4 mm.
TET-C membrane seals are manufactured from EPDM (ethylene propylene). Color: light gray This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable plug sealing clamp (EC000451)
Nominal diameter14 mm
Nominal size PG23
ModelClosed
With strain reliefno
Sealing range10-14 mm
For wall thickness1-4 mm
Degree of protection (IP)IP67
MaterialRubber
Halogen freeyes
ColourGrey
Product codes
SAPAAE587
STK1730714
PLC1730714
GTIN/EAN3606480398872
Manufacturer part numberIMT37307
Vendor material number1730714
Basic information
Package measurements (L x W x H)28 x 28 x 23 mm
Package volume0.018 l
Package weight0.008 kg
Base uniteach
Package units1 / 50 / 1350
Package contents–
UNSPSC39121311
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC LEXEL
Environment and safety
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
