Roll over image to zoom in

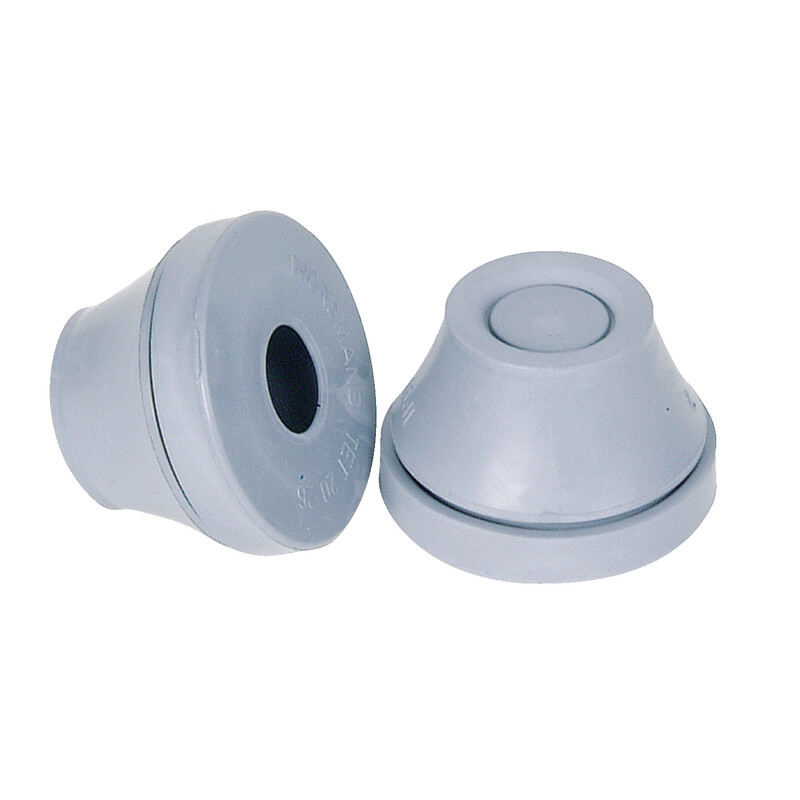

MEMBRANE SEAL TET 20-26
Product code
1730726
Thorsman TET 20-26, grommet, grey, diameter 20 to 26
IP 67, for non-threaded holes with plate thicknesses of 1...4 mm.
TET=gray EPDM. TET-C=oil-resistant, black CR.
Rubber membrane seals that both clamp and seal, protection class IP67.
Used in non-threaded holes with diameters of 0.5-4 mm.
TET-C membrane seals are manufactured from EPDM (ethylene propylene). Color: light gray This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable plug sealing clamp (EC000451)
Nominal diameter26 mm
Nominal size PG38
ModelClosed
With strain reliefno
Sealing range20-26 mm
For wall thickness1-4 mm
Degree of protection (IP)IP67
MaterialRubber
Halogen freeyes
ColourGrey
Product codes
SAPAAE589
STK1730726
PLC1730726
GTIN/EAN3606480398940
Manufacturer part numberIMT37314
Vendor material number1730726
Basic information
Package measurements (L x W x H)46 x 46 x 30 mm
Package volume0.063 l
Package weight0.023 kg
Base uniteach
Package units1 / 25 / 400
Package contents–
UNSPSC39121311
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC LEXEL
Documents (5)
Environment and safety
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
