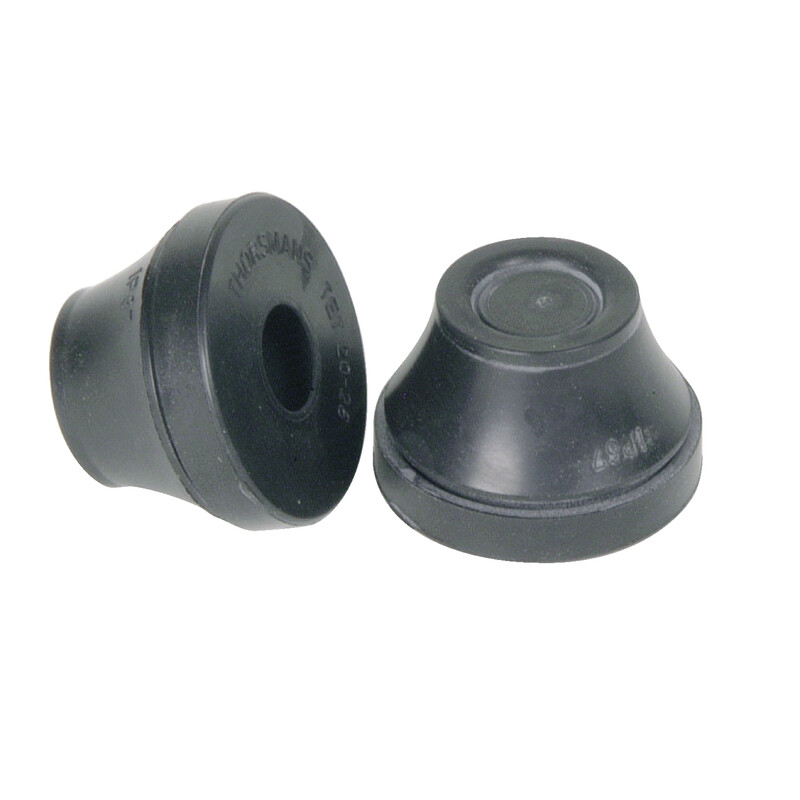

MEMBRANE SEAL TET-C 10-14
Product code
1730764
Thorsman - Cable Management and Mounting for Demanding Professionals
- Perfect cable mounting system with nailed and screwed fasteners in multiple colors. The fasteners offer class-leading performance thanks to UV-protected, impact-resistant plastic material and durable surface treatments of metal components. Larger sizes fit into flexible conduits running through hollow walls.
- Products that can be mounted on various sheet materials without special tools. High load capacity combined with rapid installation.
- Bolts and anchors for heavier installations. Through-bolt certifications: SP SITAC No. SC0268-10, concrete screw certifications: ETA 05/0010, ETA 05/0011, DIBt No. Z-21.1-1503.
- TP wall plugs color-coded by size. The color indicates which drill bit and screw size to use.
- TPH plug performs well in softer materials such as lightweight concrete.
- Innovative cable clips designed for both cable and conduit installations. They are especially well-suited to our Schneider Electric quick-connect system.
Product details
Technical specifications
Product class (ETIM)Cable plug sealing clamp (EC000451)
Nominal diameter14 mm
Nominal size PG23
ModelClosed
With strain reliefno
Sealing range10-14 mm
For wall thickness1-4 mm
Degree of protection (IP)IP67
MaterialRubber
Halogen freeno
ColourBlack
Product codes
SAPAAE593
STK1730764
PLC1730764
GTIN/EAN3606480398889
Manufacturer part numberIMT37308
Vendor material number1730764
Basic information
Package measurements (L x W x H)27 x 27 x 22 mm
Package volume0.016 l
Package weight0.008 kg
Base uniteach
Package units1 / 50 / 1500
Package contents–
UNSPSC39121311
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC LEXEL
Documents (5)
Environment and safety
Manufacturer
NameSchneider Electric Finland Oy
Websitehttps://www.se.com/fi/fi/
Postal addressSokerilinnantie 11 C, 02600 Espoo, Finland
