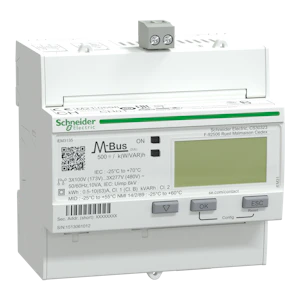

METER SET ACTI 9 IEM3135 3P 63A CL1 DIN

Acti 9 iEM3000 series energy meters

• Cost-effective energy meters with numerous features, designed for DIN rail and module enclosure mounting
• Thanks to native Modbus, BACnet, M-bus, and LON protocols, these meters can be easily integrated into commercial and non-critical buildings to provide simple energy management applications for virtually any BMS, AMR, or EMS system
• The Acti 9 iEM3000 series meters are more than just kWh meters: they provide a complete picture of energy consumption and production, including quadrant measurements of active and reactive energy import and export. In addition, extensive real-time measurements (V, I, P, PF) give customers more detailed insights into their energy usage. Thanks to multiple tariffs, customers can tailor billing to their specific needs
• Meters are fully compatible with the Acti 9 communication system
• Accuracy class 1.0 (iEM3100 models) and 0.5S (iEM3200 models) for active energy measurement
• Accuracy class 2 for reactive energy measurement
• Standards: EN50470-1/3 (MID), IEC 61557-12, IEC 62053-21/22, IEC 62053-23
• WAGES monitoring (water, air, gas, electricity, steam)

Benefits

• Optimize energy consumption and implement energy-efficient practices
• Learn to understand consumption patterns by accurately allocating energy costs

Applications

• Verify billing to ensure that only consumed energy is charged
• Submetering individual tenants based on their energy consumption, including WAGES
• Aggregate energy consumption, including WAGES, and allocate costs by area, consumption type, shift, or time period
• Buildings, industry, data centers, networks, and infrastructure (airports, tunnels, telecommunications)

This product description is an automated translation of the original Finnish description.
