MOTOR CIRCUIT-BREAKER EASYPACT GZ1E,AC-3,3P,2.5..4A
Product code
3782964
No product description available.
Product details
Technical specifications
Product class (ETIM)Motor protection circuit-breaker (EC000074)
Overload release current setting2.5 - 4 A
Adjustment range undelayed short-circuit release51 - 51 A
With thermal overload protectionyes
Phase failure sensitiveno
Switch off techniqueThermomagnetic
Rated operating voltage690 - 690 V
Rated permanent current Iu4 A
Rated operation power at AC-3, 230 V0.75 kW
Rated operation power at AC-3, 400 V1.5 kW
Power loss2.5 W
Type of electrical connection of main circuitScrew connection
Type of control elementPush button
Device constructionComplete device in housing
With integrated auxiliary switchno
With integrated under voltage releaseno
Product codes
SAPHEK827
STK3782964
PLC3782964
GTIN/EAN3606480567841
Manufacturer part numberGZ1E08
Vendor material number3782964
Basic information

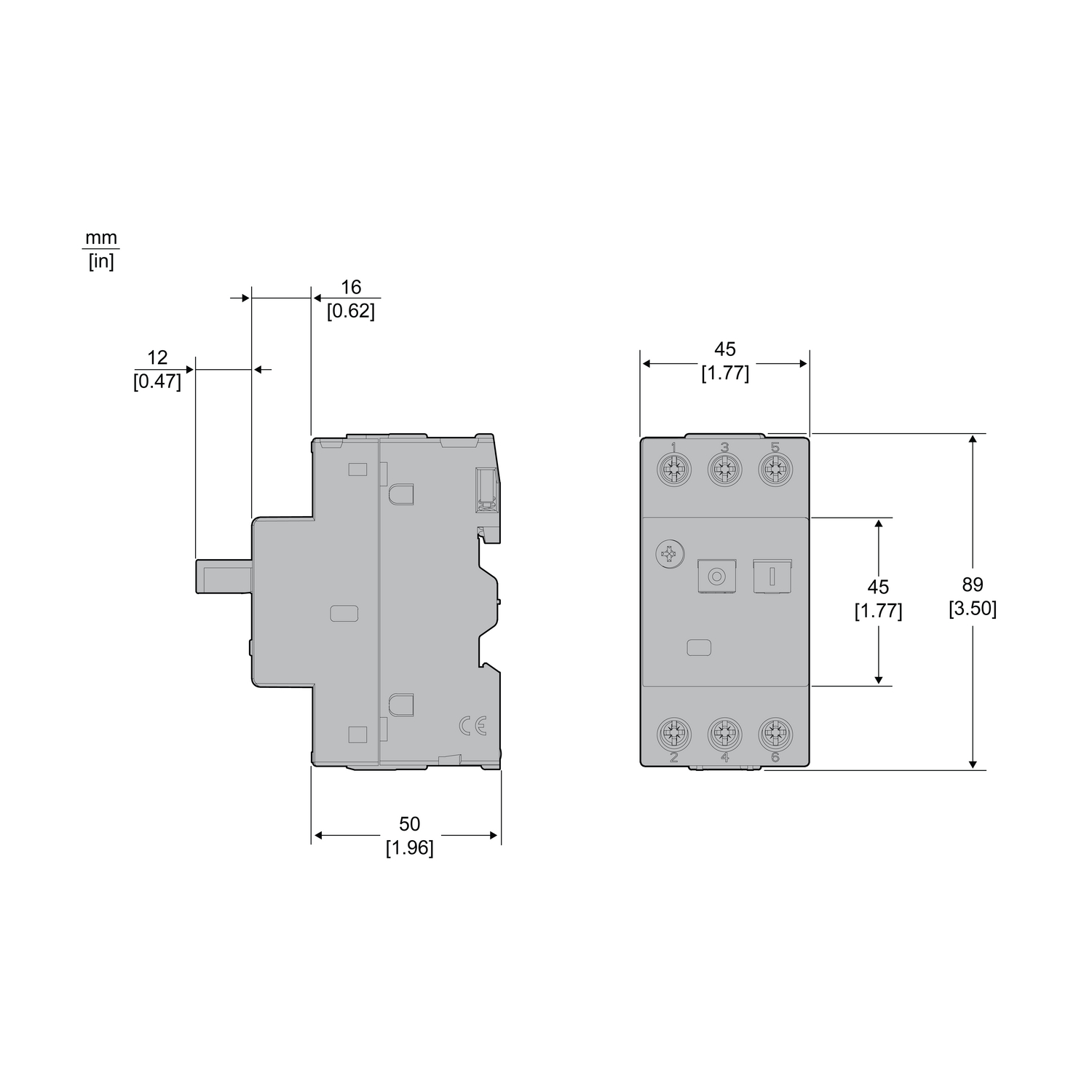

Package measurements (L x W x H)91 x 85 x 45 mm
Package volume0.348 l
Package weight0.238 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121521
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC FINLAND OY
